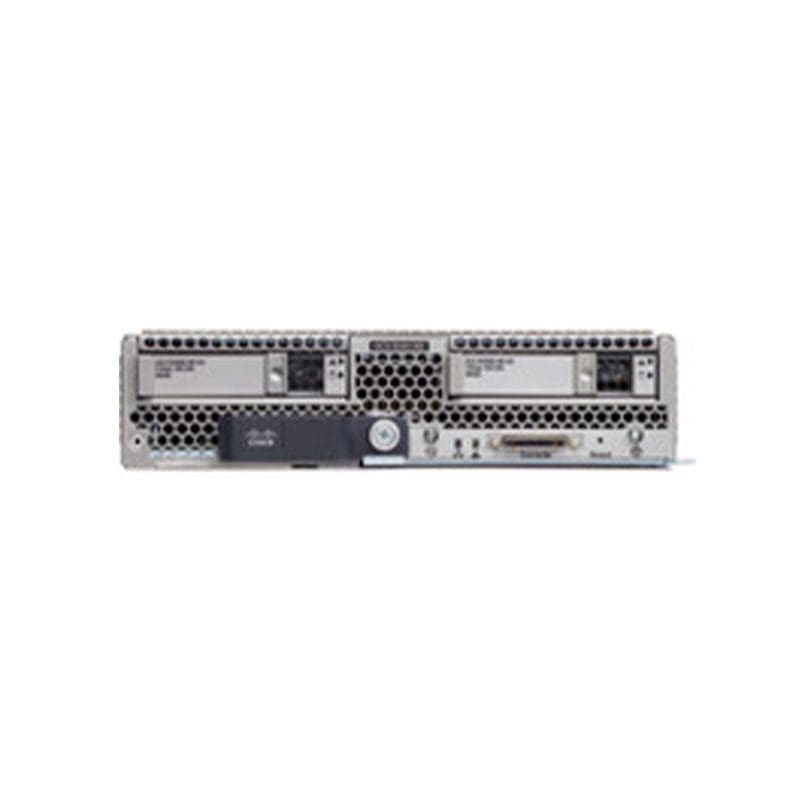

UCS-SP-B200M4-A3T Cisco UCS SmartPlay Select B200 M4 Advanced

UCS-SP-B200M4-A3T Overview

Optimized for data center or cloud, the Cisco UCS B200 M4 can quickly deploy stateless physical and virtual workloads, with the programmability of the UCS Manager and simplified server access of SingleConnect technology.

$9,810

Buy Now
Availability: In Stock
SKU:UCS-SP-B200M4-A3T
Brand:

UCS-SP-B200M4-A3T Technical Specifications

Cisco UCS SmartPlay Select B200 M4 Advanced

Bay Provided
Form Factor :2.5″ SFF
Free Qty :2
Total Qty :2
Cache Memory
Installed Size :60 MB
Installed Size :60
Per Processor Size :30 MB
Per Processor Size :30
Chassis
Form Factor :Blade
Hot-Swap Bays Qty :2
Manufacturer Form Factor :Blade Server
Server Storage Bays :Hot-swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Width :8 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :CPU
Type :DIMM 288-pin
Type :Expansion slot
Type :SDHC Card (internal)
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :SmartPlay Select B200 M4 Advanced 3 (Not sold Standalone )
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 internal
Type :USB 2.0
Qty :1
Type :KVM
Mainboard
Chipset Type :Intel C612
Processor Socket :LGA2011-v3 Socket
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Included Accessories :2 x CPU Heatsink, 2 x drive blanking panels
Networking
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ae, IEEE 802.3x
Data Link Protocol :10 Gigabit Ethernet, 10Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1340
Ethernet Ports :4 x 10 Gigabit Ethernet
Remote Management Controller :Cisco Integrated Management Controller
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None
Processor
Clock Speed :2.3 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.1 GHz
Number of Cores :12-core
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2
Processor Number :E5-2670V3
Server Scalability :2-way
Type :Intel Xeon
Upgradability :Upgradable
RAM
Configuration Features :8 x 32 GB
Data Integrity Check :ECC
Empty Slots :16
Features :Quad rank, Registered
Form Factor :DIMM 288-pin
Installed Size :256 GB
Installed Size :256
Max Supported Size :768 GB
Max Supported Size :768
Memory Specification Compliance :PC4-17000
Memory Speed :2133 MHz
Rated Memory Speed :2133 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM
RAM Supported
Data Integrity Check :ECC
Max Size :768 GB
Max Size :768
Registered or Buffered :Registered
Type :PC4-17000
Max Size :1.5 TB
Max Size :1.5
Registered or Buffered :Load-Reduced
