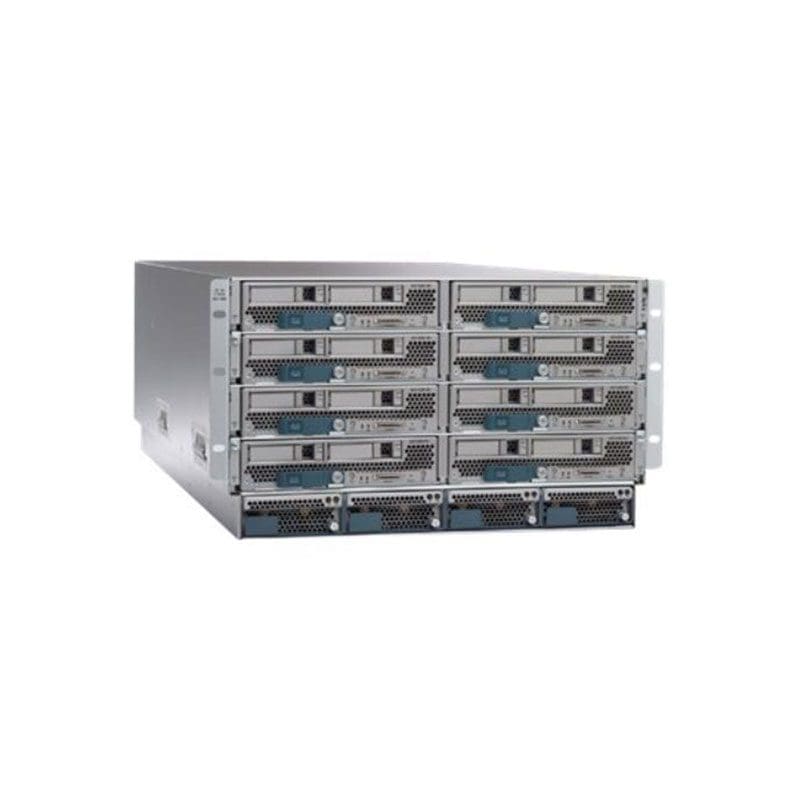

UCS-SP-MINI-AC2 Cisco UCS Mini Smart Play Select 5108 Blade Server

UCS-SP-MINI-AC2 Technical Specifications

Cisco UCS Mini Smart Play Select 5108 Blade Server

Chassis
Form Factor :Rack-mountable
Supported Blades Qty :8
Cooling System
Features :Hot-swap
Quantity :8
Type :Fan
Dimensions & Weight
Depth :32 in
Height :10.5 in
Width :17.5 in
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Header
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model : UCS 5108 Blade Server Chassis (Not sold Standalone )
Packaged Quantity :1
Product Line :Cisco UCS Mini Smart Play Select
Miscellaneous
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR 22, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, EN 300386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943.1, ICES-003 Class A, IEC 60950-1, KN22 Class A, UL 60950-1, VCCI Class A
Height (Rack Units) :6
Power Device
Frequency Required :50 – 60 Hz
Max Supported Qty :4
Nominal Voltage :AC 120/230 V
Power Provided :2500 Watt
Power Redundancy :Yes
Power Redundancy Scheme :N+1
Type :Power supply – hot-plug
