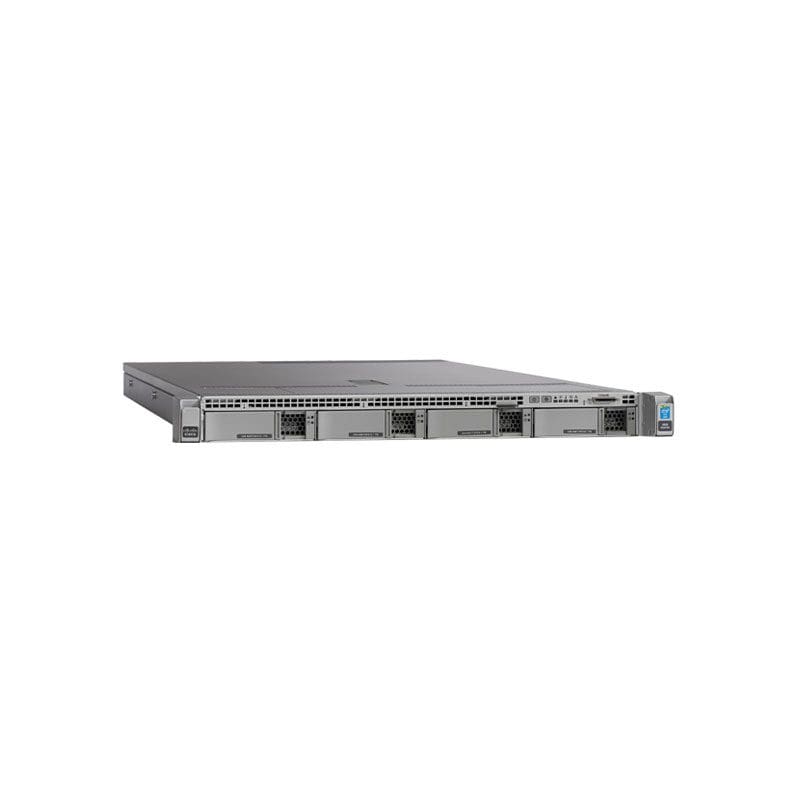

UCUCS-EZ-C220M3S Cisco UCS C220 M3 Small Form Factor – rack-mountable

UCUCS-EZ-C220M3S Overview

The Cisco UCS C220 M3 rack server is designed for performance and density over a wide range of business workloads, from web serving to distributed database.


Buy Now
Availability: In Stock

UCUCS-EZ-C220M3S Technical Specifications

Cisco UCS C220 M3 Small Form Factor – rack-mountable

Bay Provided
Form Factor :2.5″
Free Qty :0
Total Qty :8 Bays
Cache Memory
Installed Size :20 MB
Installed Size :20
Per Processor Size :10 MB
Per Processor Size :10
Type :L3 cache
Form Factor :Rack-mountable
Hot-Swap Bays Qty :8
Manufacturer Form Factor :Rack-mountable
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SAS
Dimensions & Weight
Depth :28.5 in
Height :1.7 in
Width :16.9 in
Type :None.
Type :None.
Environmental Parameters
Humidity Range Operating :10 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :41 °F
Expansion Bays
Form Factor (metric) :6.4 cm
Type :Hot-swap
Expansion Slots
Size :Half-length
Type :PCIe 2.0 x8
Size :Half-length, full-height
Type :PCIe 2.0 x16
Type :CPU
Type :Memory
Hard Drive
Installed Qty :8
Interface Class :Serial Attached SCSI
Removable :Hot-swap
Spindle Speed :15000 rpm
Type :HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Brand :Cisco
Compatibility :PC
Manufacturer :Cisco Unified Computing
Model :C220 M3 Small Form Factor
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 in front
Qty :6
Type :LAN (Gigabit Ethernet)
Qty :1
Type :Serial
Qty :2
Type :USB 2.0
Type :KVM
Type :Management (NIC)
Type :VGA
Chipset Type :Intel C600
Processor Socket :LGA2011 Socket
Color Category :Gray
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, UL 60950-1, VCCI Class A ITE
Height (Rack Units) :1U Rack Mount
Included Accessories :16 GB SD Memory Card, 2 x CPU Heatsink, Rack rail kit
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Controller(s) :2 x Intel I350
Ethernet Ports :6 x Gigabit Ethernet
Remote Management Controller :Emulex Pilot 3 iBMC
Remote Management Protocol :CLI, IPMI 2.0
Type :Network adapter
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Power Device
Frequency Required :50/60 Hz
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Provided :650 Watt
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Type :Power supply
Type :None
64-bit Computing :Yes
Clock Speed :3.3 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Max Turbo Speed :3.5 GHz
Number of Cores :Quad-Core
Processor Main Features :Hyper-Threading Technology, Intel Turbo Boost Technology 2
Processor Number :E5-2643
Server Scalability :2-way
Type :Xeon E5-2600 series
Upgradability :Upgradable
Configuration Features :8 x 8 GB
Features :Dual rank, Low-voltage, Registered
Installed Size :64 GB
Installed Size :64
Max Supported Size :256 GB
Max Supported Size :256
Memory Specification Compliance :PC3-12800
Memory Speed :1600 MHz
Rated Memory Speed :1600 MHz
Technology :DDR3 SDRAM
