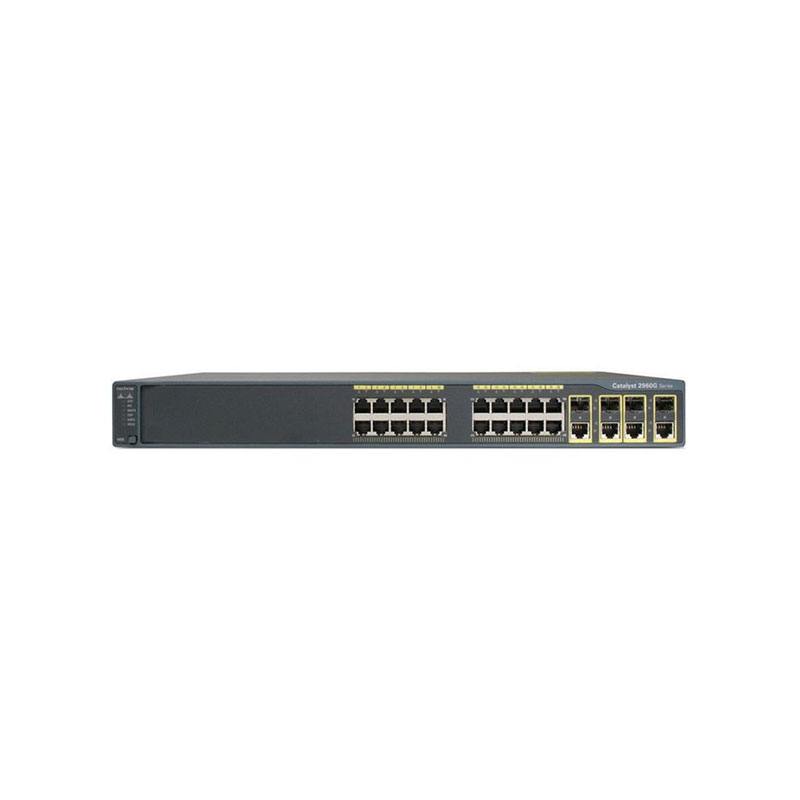

WS-C2960G-24TC-L Technical Specifications
Cisco 24 x Ports RJ-45 + 4 x SFP Network Switch
Part Number: WS-C2960G-24TC-L
Series: Cisco Catalyst 2960G Series
Type: Layer 2 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000 RJ-45
Uplink Ports: 4 x 1G SFP
Switching Capacity: 32 Gbps
Forwarding Rate: 38.7 Mpps
MAC Address Table: 8,000 entries
VLAN Support: Up to 1,024 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 4 Queues, IEEE 802.1p, DSCP
Security: 802.1X, ACLs, Port Security
Management: CLI, Web Device Manager, SNMP v1/v2c/v3, RMON
Stacking Capability: Not supported
Port Mirroring: Supported
LED Indicators: Power, Link/Activity, Speed
Form Factor: 1U Rack-mountable
Power Supply: Internal AC
Power Consumption: ~55W
Operating Temperature: 0°C to 40°C
