WS-X6348-RJ45V Technical Specifications

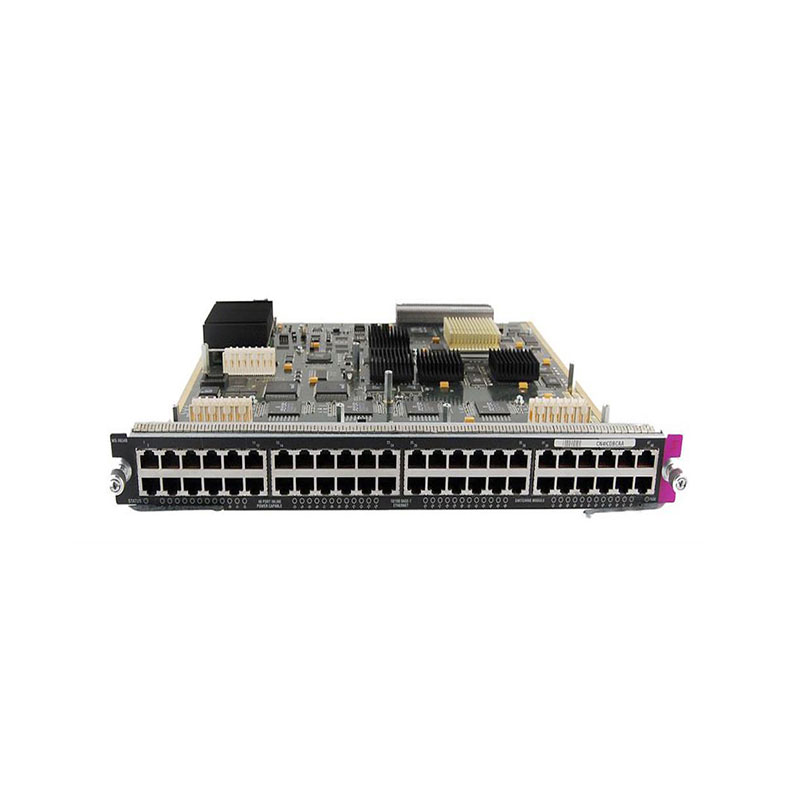

Cisco 48-Ports 10/100Mbps RJ-45 Switching Module
Manufacturer: Cisco
Manufacturer Part Number: WS-X6348-RJ45V
Type: Catalyst 6500 Fast Ethernet Switching Module
Ports: 48 x 10/100Base-TX RJ-45
Layer: Layer 2 / Layer 3 switching
Management: Through Catalyst 6500 supervisor
VLAN: IEEE 802.1Q VLAN tagging supported
QoS: Hardware-based traffic prioritization
Security: ACLs, port security, 802.1x authentication
Switching Capacity: Dependent on chassis and supervisor
Forwarding Rate: Based on supervisor engine
Jumbo Frames: Supported (up to 9216 bytes)
Hot Swap: Yes, Online Insertion and Removal (OIR)
Chassis Support: Cisco Catalyst 6500 Series
Form Factor: Line card module (occupies 1 slot)
LEDs: Link, activity, and module status indicators
Redundant Power: Supported via chassis power system
Cooling: Chassis-based airflow
STP: STP, RSTP, MSTP supported
