XBR-000258 Technical Specifications

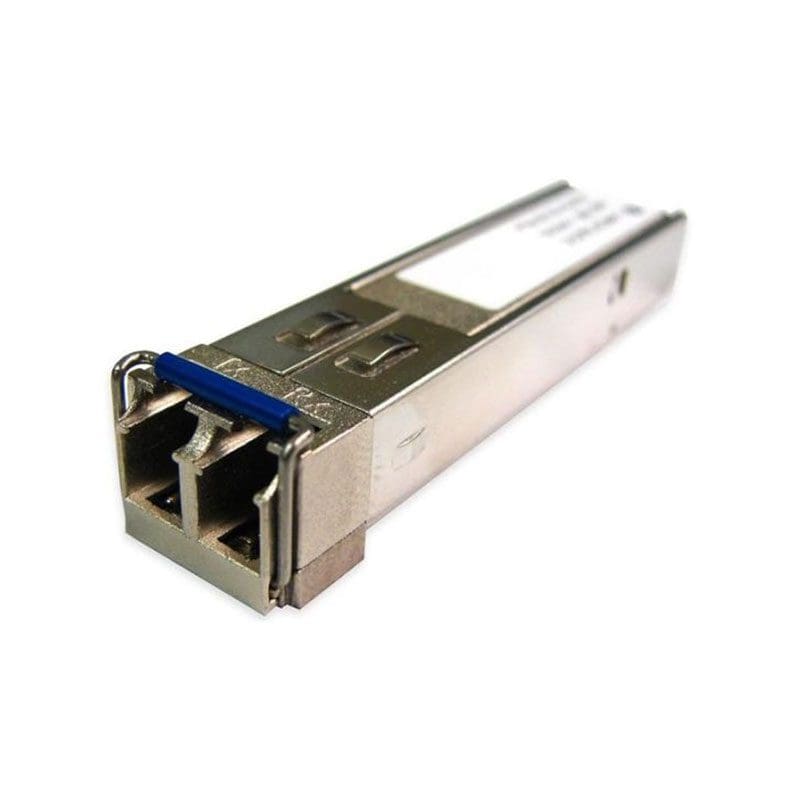

Brocade 16G FC SFP+ ELWL Transceiver Module
Manufacturing Part Number: 57-1000262-01
Device Type: 16G FC SFP+
Max Data Rate: 16Gbps
Wavelength: 1310nm
Max Distance: 25km
Connector: Duplex LC
Cable Type: SMF
DDMI: Yes
Operating Temperature Range: 0 to 70°C (32 to 158°F)
Platform Support
Brocade FC32-48
Brocade G630
Brocade G620
Brocade G610
Brocade DCX8510
Brocade 6520
Brocade 6510
Brocade 6505
Brocade SX6
Brocade 7840
Brocade 7810
