00AL141 Technical Specifications

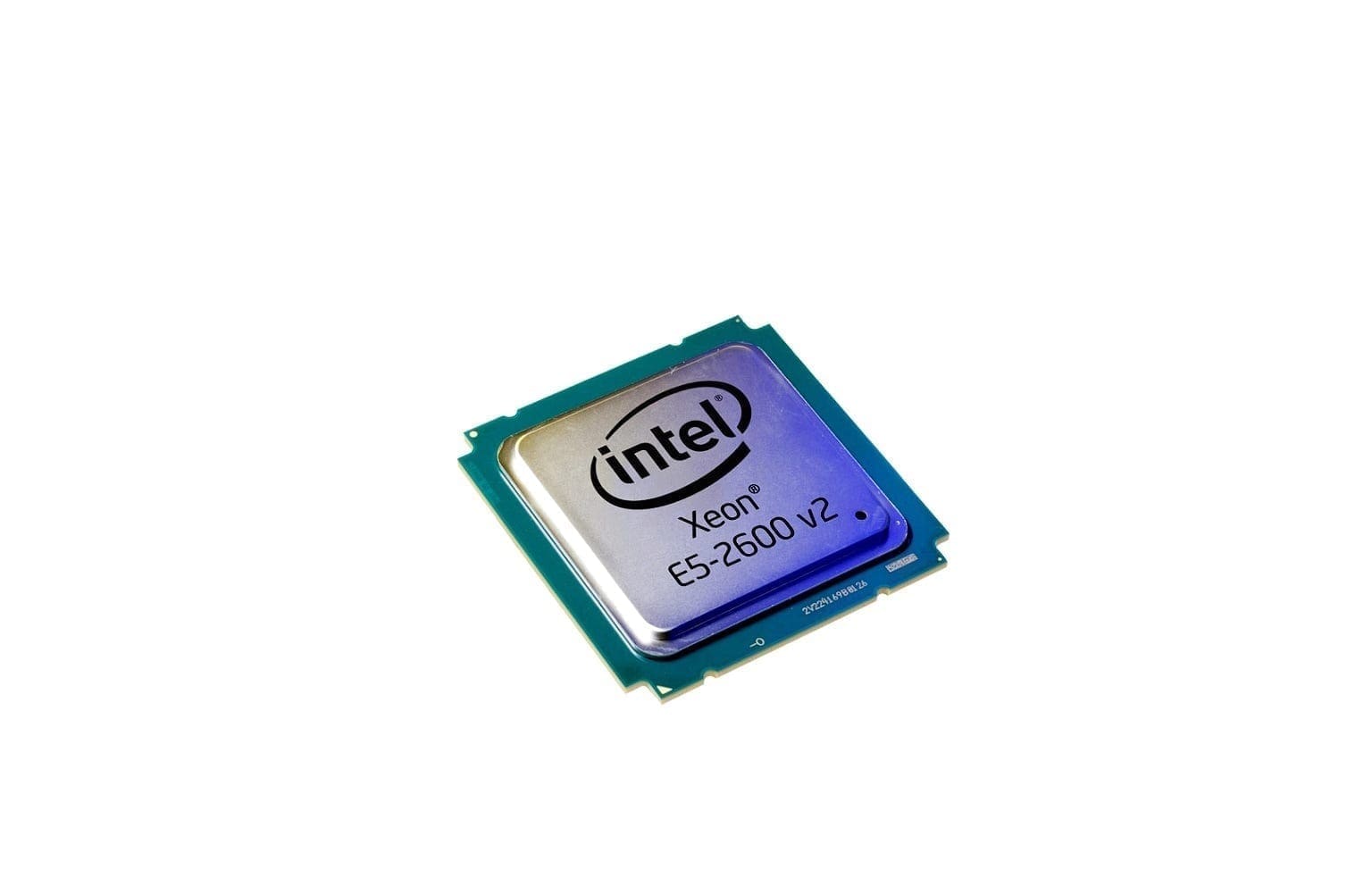

IBM 2.60GHz 7.20GT/s QPI 15MB L3 Cache Intel Xeon E5-2630 v2 6 Core Processor Upgrade
Brand Intel
Part No. 00AL141
Processor Type Server
Processor Family E5-2600 v2
Series Xeon Processor
Core Model Type/ProcNo. E5-2630 v2
Processor Code Name Ivy Bridge EP
Core Stepping S1
Manufacturing Technology 22 nm
# of Cores 6
# of Threads 12
Clock Speed 2.60 GHz
L3 Cache Size 15 MB
Front Side Bus / QuickPath Interconnect 7.20 GT/s
Thermal Power 80 Watts
VID Voltage Range 0.65–1.30V
CPU Socket Type LGA 2011
Product Condition OEM
