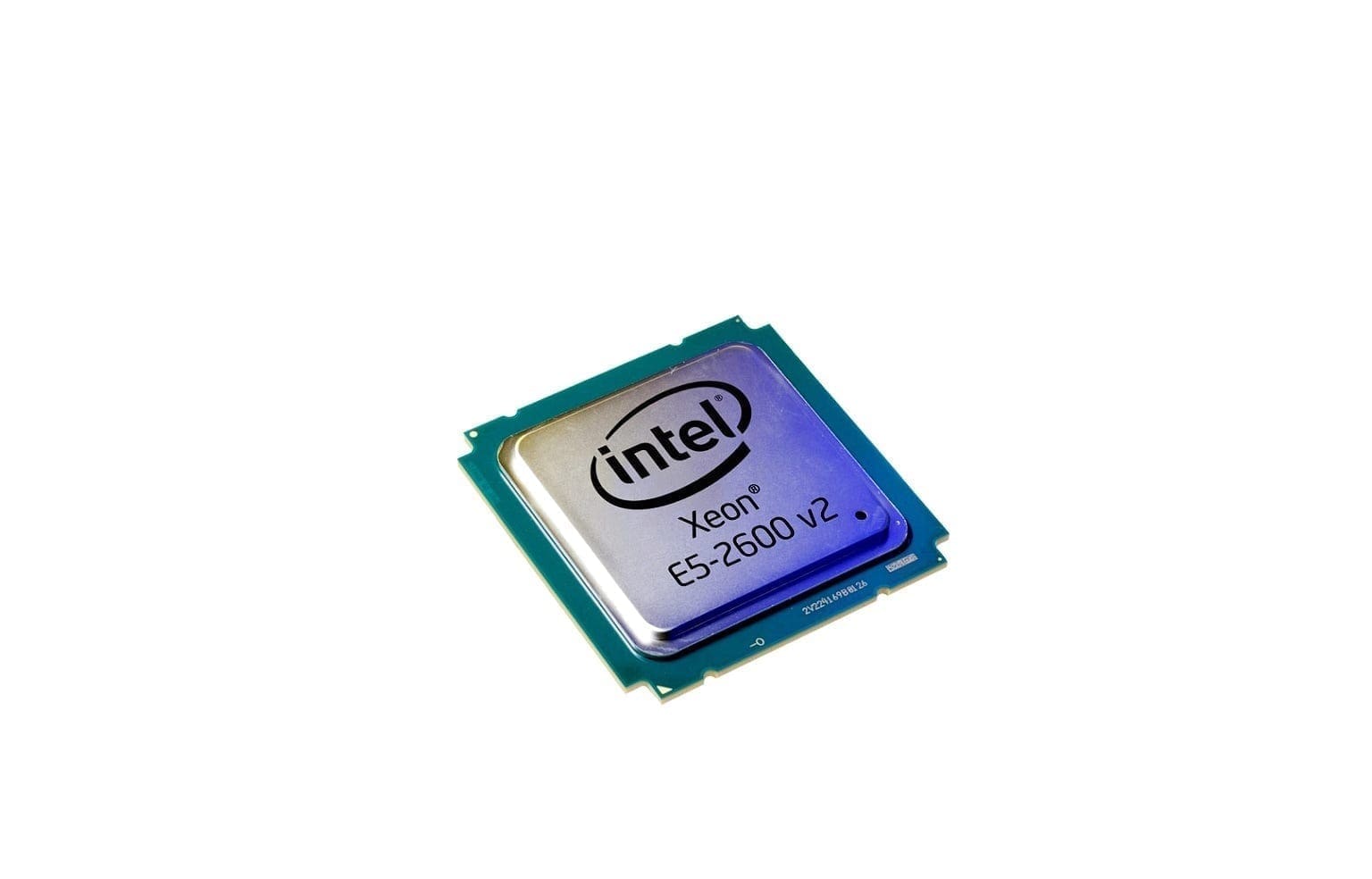

00AL144 IBM 2.20GHz 8.00GT/s QPI 25MB L3 Cache Intel Xeon E5-2660

00AL144 Technical Specifications

IBM 2.20GHz 8.00GT/s QPI 25MB L3 Cache Intel Xeon E5-2660 v2 10 Core Processor Upgrade

Brand Intel
Part No. 00AL144
Processor Type Server
Processor Family E5-2600 v2
Series Xeon Processor
Core Model Type/ProcNo. E5-2660 v2
Processor Code Name Ivy Bridge EP
Core Stepping M1
Manufacturing Technology 22 nm
CPU ID String 0306E4h
# of Cores 10
# of Threads 20
Clock Speed 2.20 GHz
L3 Cache Size 25 MB
Front Side Bus / QuickPath Interconnect 8.00 GT/s QPI
Thermal Power 95 Watts
VID Voltage Range 0.65V – 1.3V
CPU Socket Type LGA 2011
Product Condition OEM
