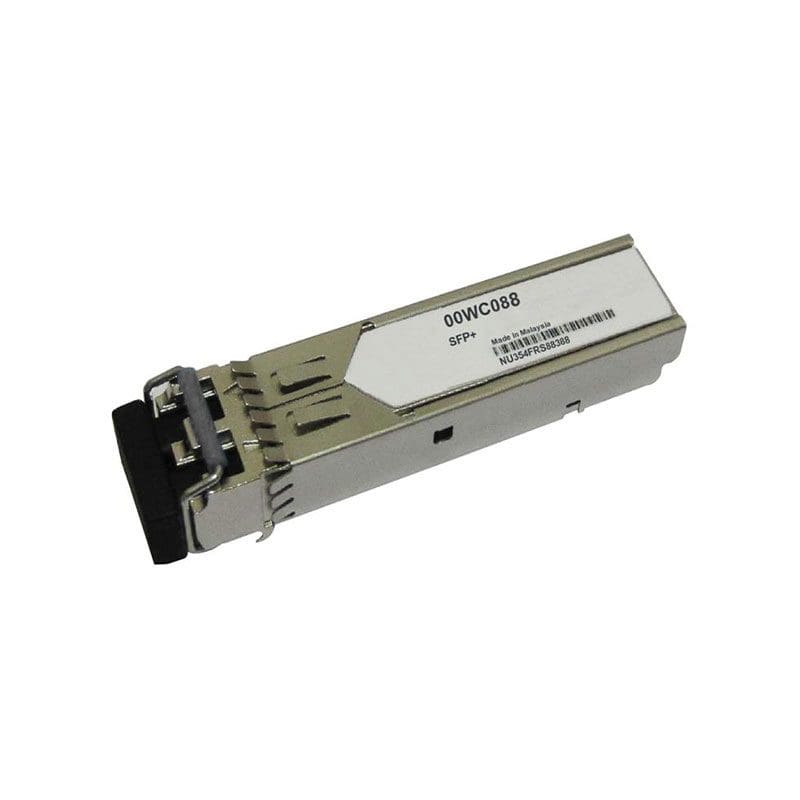

00WC088 Lenovo 8Gbps Fibre Channel Transceiver Module

00WC088 Technical Specifications

Lenovo 8Gbps 8GBase-SW Fibre Channel Multi-mode Fiber 150m 850nm LC Connector SFP+ Transceiver Module for Storage S2200 and S3200

Manufacturer Part Number: 00WC088
Brand Name: Lenovo
Product Type: SFP+
Technical Information
Application/Usage Data Networking
Optical Network
Interfaces/Ports
Interfaces/Ports Details: 1 x Fiber Channel
Media & Performance
Media Type: Supported Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: Fiber Channel
Performance
Maximum data transfer rate: 8000 Mbit/s
Interface type: SFP+
Auto MDI/MDI-X: Yes
Features
Hot-Plug support: Yes
Compatible products: Lenovo Storage S2200/S3200
Certification: MSA
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Operating relative humidity (H-H): 10 – 80%
Storage relative humidity (H-H): 10 – 85%
Weight & dimensions
Width: 13.4 mm
Depth: 56.5 mm
Height: 8.5 mm
