017MXW Technical Specifications

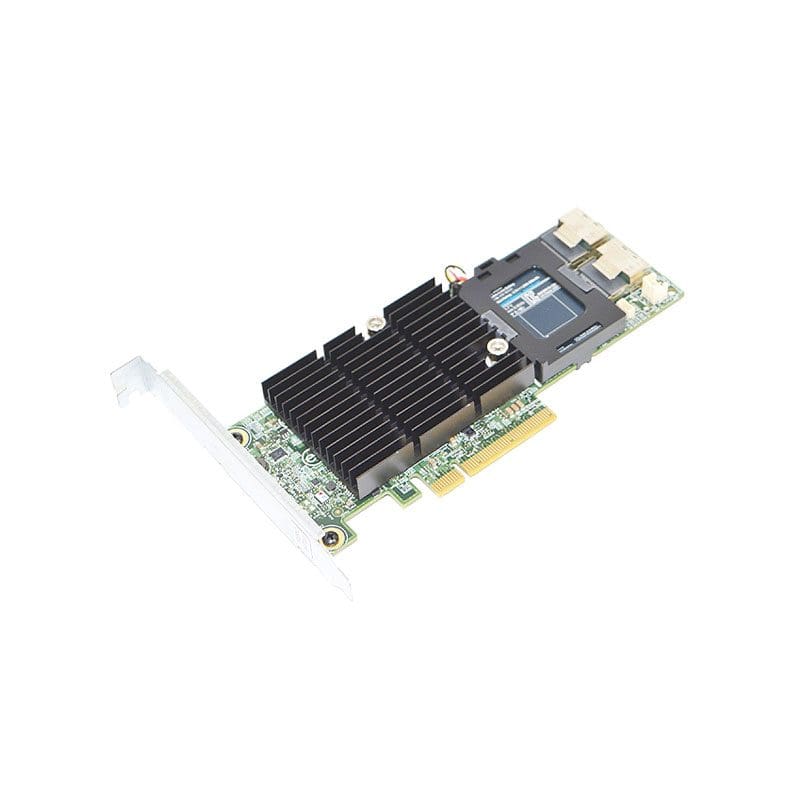

Dell PERC H710 512MB NV Cache SAS 6Gbps PCI Express 2.0 x8 RAID Controller Card
Part Number : 017mxw
Manufacturer : Dell
Product Details :
Device Type : Storage Controller (raid) – Plug-in Card
Interface Type : Pci Express 2.0 X8
Data Transfer Rate : Up To 6gb/s Per Port
Connectors : Two Internal Mini-sas Sff8088
Non-volatile Cache Standard : 512mb (nv)
Battery Backup : Yes
Sas Controller : Lsi Sas 2208 Dual-core Powerpc Roc
Max Hard Drives Supported : 32
Raid Controller : Raid 0 1 5 6 10 50 60
Operating Voltage : +3.3v
Weight: 1 Lb
Compatibility : Dell Poweredge R820 / T320 / T420 / T620 / Precision T5600 / T7600
