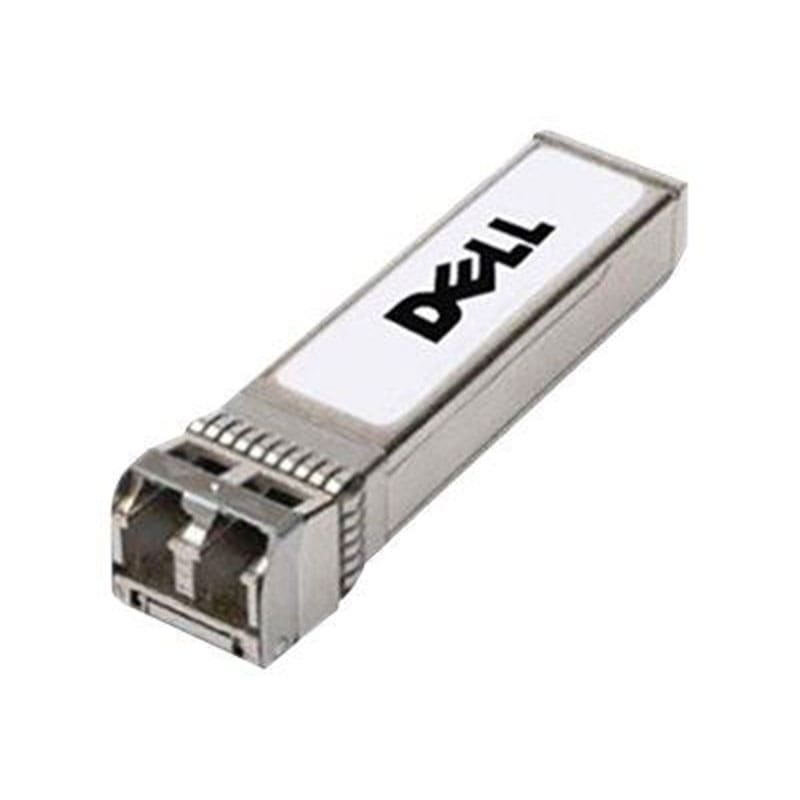

019-078-056 Dell 25GBPS 850NM Short Wavelength Transceiver
019-078-056 Overview
Dell 25GBPS 850NM Short Wavelength Transceiver The Dell 019-078-056 transceiver is a specific type of transceiver designed for high-speed data transmission. Let’s explore the key features and specifications of this transceiver.
019-078-056 Technical Specifications
Dell 25GBPS 850NM Short Wavelength Transceiver
Manufacturer: Dell
Model Number or SKU# 019-078-056
Product Type: SFP+ Transceiver Module
Product Name: Networking
Technical Information for 25GBPS Transceiver
Data Transfer Rate: 25 GBPS
Mode: Multi-Mode Fiber (MMF)
Max Distance: 100 M
Wavelength: 850 NM
Connector Type: Duplex LC Connector
Product Features
Up to 25 Gb/s Bi-directional Data Links
Hot-pluggable SFP+ Footprint
Built-in Digital Diagnostic Functions
850nm Oxide VCSEL Laser Transmitter
Duplex LC Connector
RoHS Compliant
100m over M5F MMF (50/125 um OM4)
70m over M5E MMF (50/125um OM3)
20m on MMF (50/125nm OM2)
Metal Enclosure for Lower EMI
1.2W Maximum Power Consumption
Single 3.3V Power Supply
Operating Temperature Range: 0°C to 85°C
