01CV843 Technical Specifications

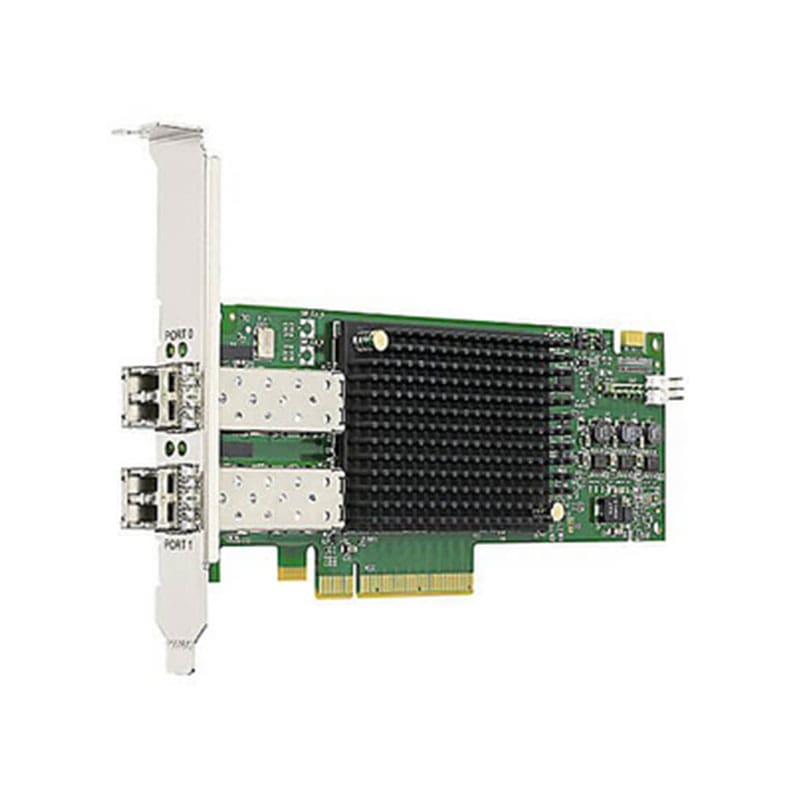

Lenovo Emulex 16GB (GEN 6) FC Dual-Ports Host Bus
Brand: Lenovo
Type: Controller
Sub-Type: Fibre Channel
Technical Information
I/O Controller: Emulex Engine 501 (Xe501) I/O Controller (Ioc)
Host Interface: PCIE 3.0×8
Port: Single-Port And Dual-Port Sfp+ Based Adapters
Link Speed : Support For 16GB,8GB And 4GB Fc Link Speeds,M Which Are Automatically Negotiated.
Data Rate: 14.025 GBps(1600 MBps), 8.5 GBps(800 MBps), And 4.25 GBps (400 Mbps) Autosensing (Per Port), With Full Duplex.
Performance: Up To 1,600,000 Lops.
Topology: Point-To-Point And Switched Fabric.
