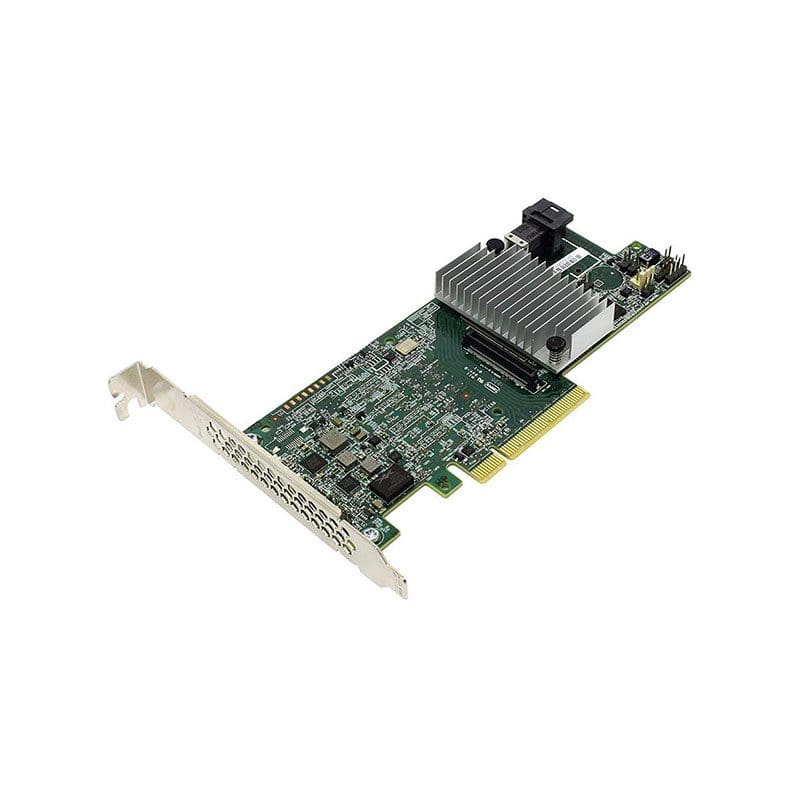

05-25420-03 LSI Logic 4-Port SATA 6Gbps PCI Express RAID Controller

05-25420-03 Technical Specifications

LSI Logic 4-Port SAS 12Gbps SATA 6Gbps PCI Express 3.0 RAID Controller

Raid-on-chip Controller: Lsisas3108 Dual Core Raid On Chip (roc)
Cache Protection : Optional Cachevault Flash Module (lsicvm02)
Physical Dimensions : 6.6 X 2.536 (low-profile)
Host Bus Type: X8 Lane Pci Express® 3.0
Cache Memory : 1gb 1866mhz Ddriii Sdram
Internal Ports: 4
Data Transfer Rates: Up To 12gb/s Per Port
Devices Supported : Up To 128 Sas And/or Sata Hard Drives And Ssds
Internal Connectors : 1 Hd Mini-sas Sff8643 (horizontal Mount)
Mtbf : >1,343,187 Hours
