05-25420-08 Technical Specifications

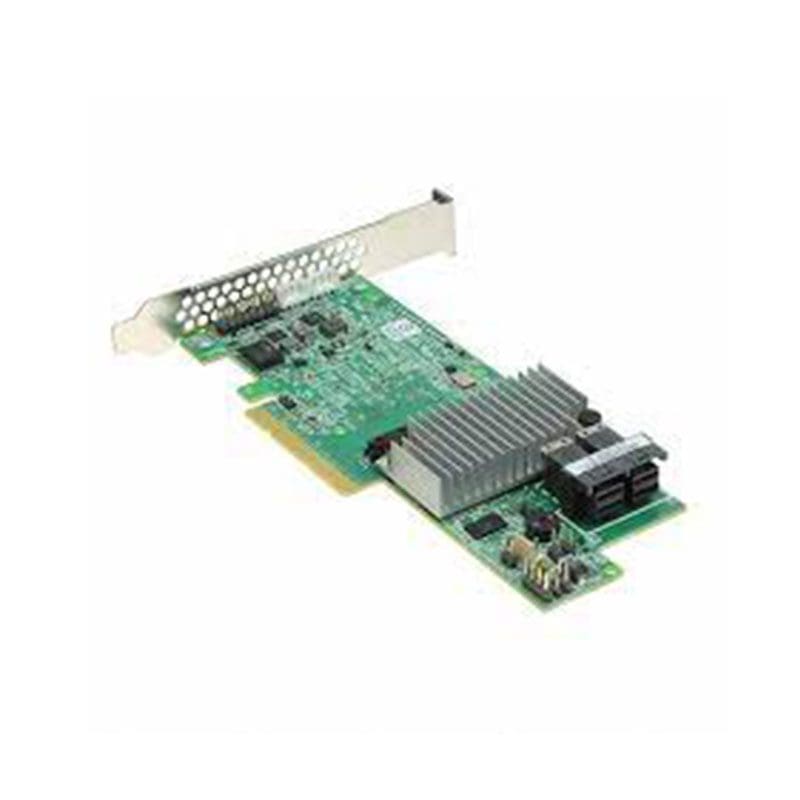

LSI Logic MegaRAID SAS 9361-8i 1GB Cache 8-Port SATA 6Gbps / SAS 12Gbps PCI Express 3.0 x8 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card
Manufacturer Part Number 05-25420-08
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
5
6
10
50
60
1
Memory
Cache Memory 1 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8643
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Weight (Approximate) 1.32 lb
Miscellaneous
Platform Supported PC
Linux
Environmentally Friendly Yes
Environmental Certification RoHS
