05-25420-10 Technical Specifications

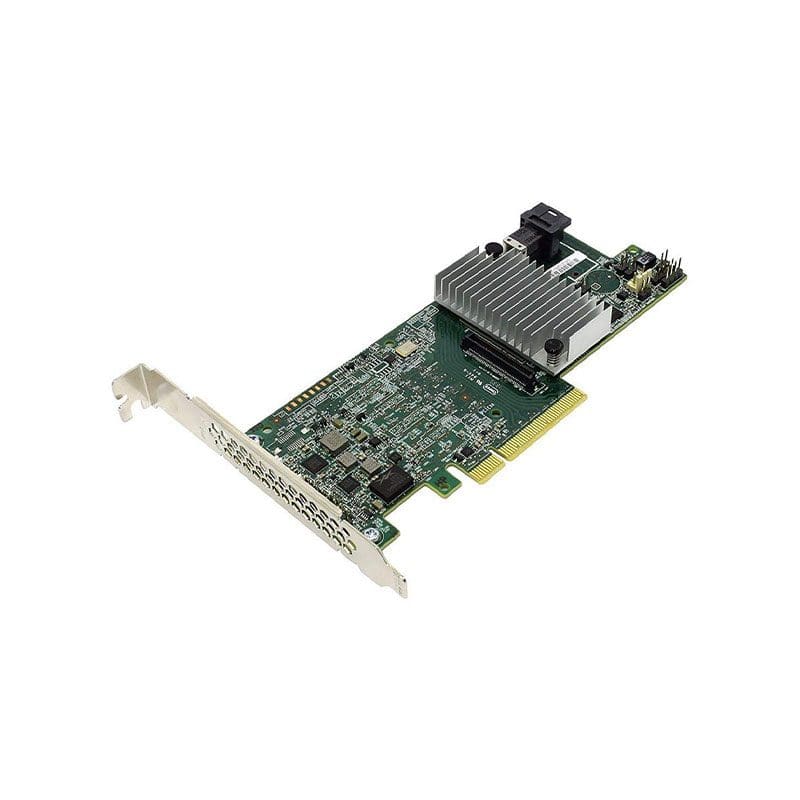

LSI MegaRAID SAS 9361-4i 1GB Cache 4-Port SATA 6Gbps / SAS 12Gbps PCI Express 3.0 x8 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card Kit
Manufacturer LSI
Manufacturer Part # 05-25420-10
Performance
Product Type RAID Controller
Form Factor Plug-in Card
Controller Memory 1 GB
Supported RAID Level(s) RAID 0
RAID 1
RAID 10
RAID 5
RAID 50
RAID 6
RAID 60
Interface PCI Express 3.0 x8
Port(s) SAS 12.0Gbps
Serial-ATA 6.0Gbps
Other Information
Features
Load Balancing
64 Logical Drive Support
Online Capacity Expansion (OCE)
Online RAID Level Migration (RLM)
Fast Initialization for Quick Array Setup
SSD Support with SSD Guard Technology
DDF compliant Configuration on Disk (COD)
Shielded State Drive Diagnostic Technology
Patrol read for media scanning and repairing
Check Consistency for background data integrity
Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T) Support
