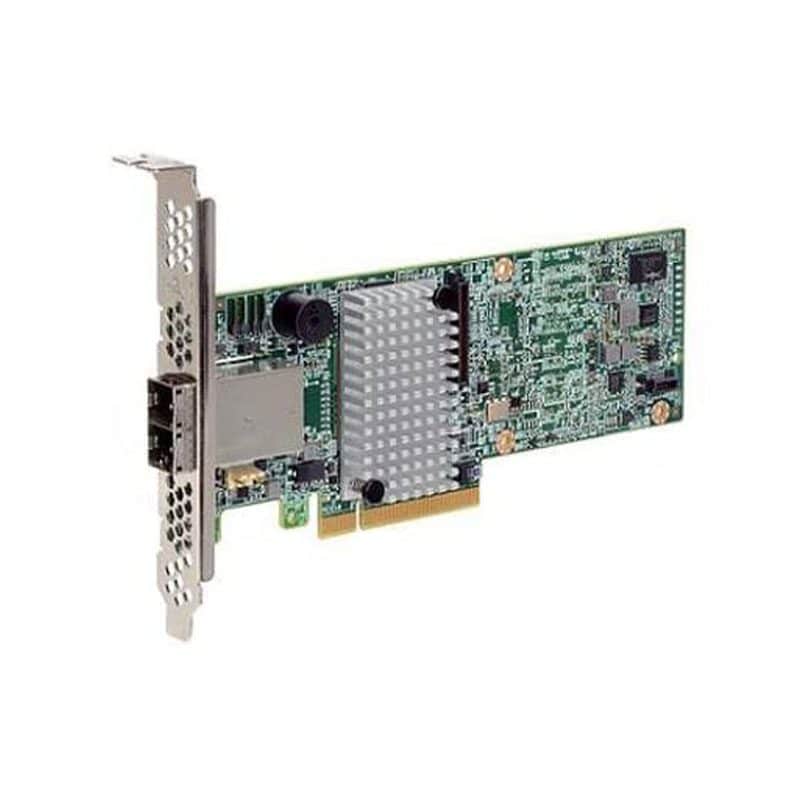

05-25528-04 LSI Logic MegaRAID SPCI Express 3.0 RAID Controller Card

05-25528-04 Technical Specifications

LSI Logic MegaRAID SAS 9380-8e 1GB Cache 8-Port SAS 12Gbps / SATA 6Gbps PCI Express 3.0 x8 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card

Manufacturer Part Number 05-25528-04
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type 12Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Data Backup Type Flash Backed Cache
Memory
Cache Memory 1 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (External) 8
SAS Connector Details 2 SFF-8644
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Linux
Environmentally Friendly Yes
Environmental Certification EU RoHS
