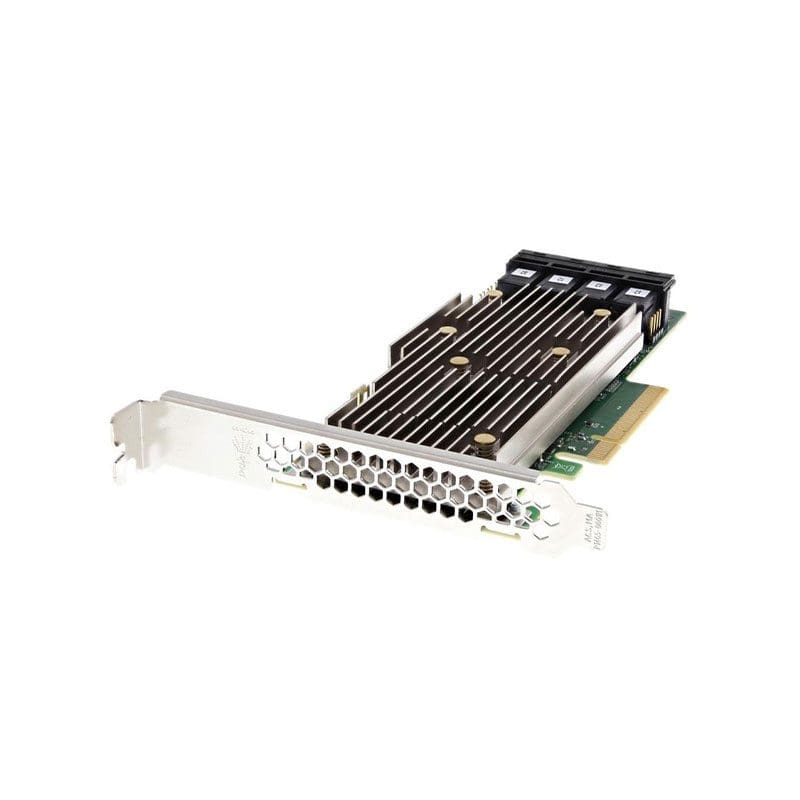

05-50011-00 LSI Logic Controller Card Megaraid 9460-16i 16port 1

05-50011-00 Technical Specifications

LSI Logic Controller Card Megaraid 9460-16i 16port 1

Manufacturer
LSI Logic
Brand
Broadcom
Product Line
Broadcom MegaRAID
Model
9460-16i
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.1 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s, 1200 Gbit/s
Interface
SATA 6Gb/s / SAS 12Gb/s / PCIe
Channel Qty
16
Supported Devices
Disk array (RAID), Hard drive
Max Storage Devices Qty
255
Buffer Size
4 GB, 4 GB
RAID Level
RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
4 x SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
Software
Type
HP Unified Extensible Firmware Interface (UEFI) Support Environment, LSI StorCLI
Power Device
Type
None
Miscellaneous
Color Category
Black, Green
Included Accessories
Low-profile bracket
Compliant Standards
AS/NZS CISPR 22, CNS 13438, EN55022, EN55024, FCC CFR47 Part 15 B Class B, ICES-003 Class B, RoHS, VCCI V-3, WEEE
Dimensions & Weight
Depth
6.1 inch
Height
2.7 inch
Service & Support
Type
3-year warranty
Service & Support Details
Service & Support
Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature
50 degree Fahrenheit
Max Operating Temperature
131 degree Fahrenheit
