05-50077-00 Technical Specifications

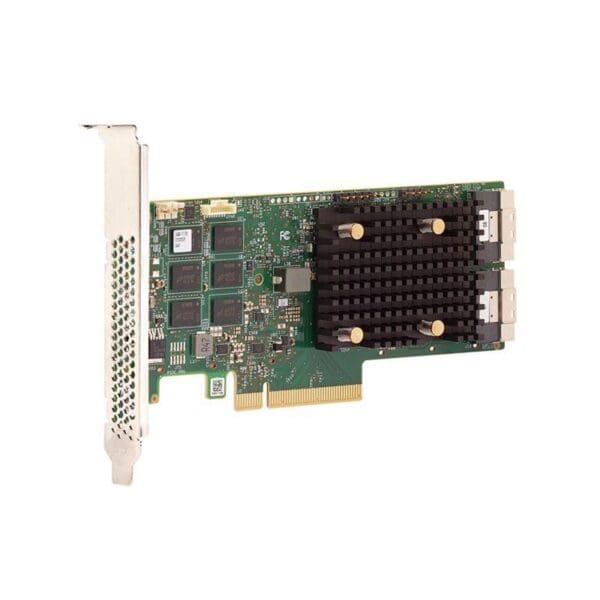

BROADCOM 9560-16i Megaraid 12gb/s Sas/sata Pcie Gen 4.0(nvme) Tri-mode Raid Controller
Port Count: 16 Internal
Connectors: Two X8 Sff-8654
Host Interface: X8 Pcie Gen 4.0
Storage Interface: 12gb/s Sas, 6gb/s Sata, Gen 4.0 Pcie (nvme)
Raid On Chip Controller (roc): Sas3916
Max Devices Per Controller: Sas/sata: 240 Nvme: 24
Cache Size: 8 Gb
Cache Protection: Cachevault, Cvpm05
