0B40342 HGST Ultrastar DC SS530 400GB SAS 12GBPS 3D TLC Nand

0B40342 Technical Specifications

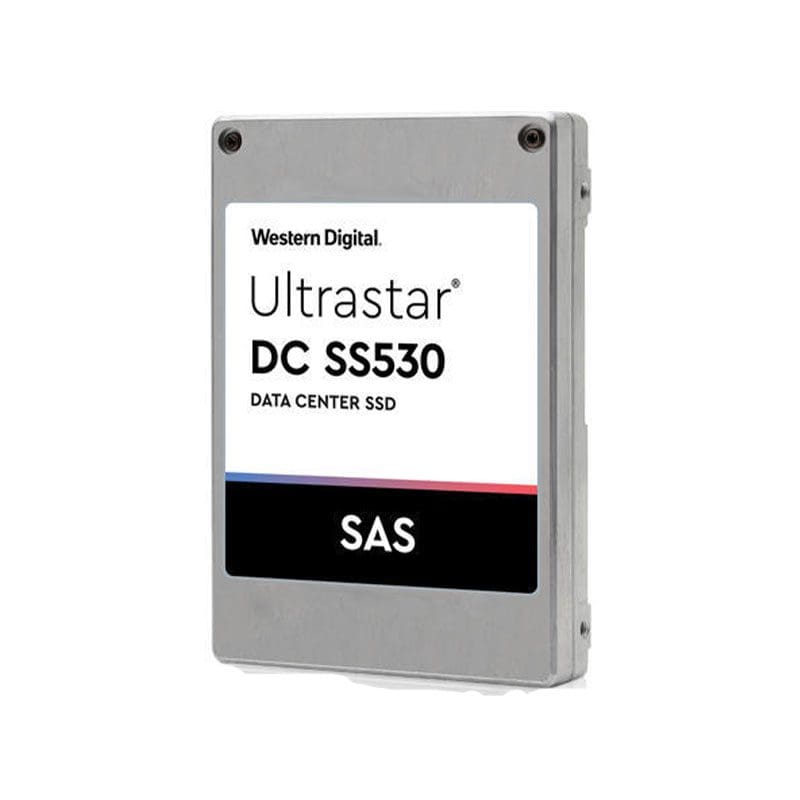

HGST Ultrastar DC SS530 400GB SAS 12GBPS 3D TLC Nand ISE 2.5Inch Sff Solid State Drive

GENERAL INFORMATION :
Brand : Hgst
Part : 0b40342
Product Type : Solid State Drive (SSD)
Product Series : Ultrastar Dc Ss530
Product Name : Ultrastar Dc Ss530 Enterprise Solid State Drive.

APPLICATIONS/ENVIRONMENTS :
Ultra-High Performance Tier-0 Enterprise Storage
Enterprise-Class Servers And High Performance Computing
Software-Defined Storage (Sds)
Online Transaction Processing (Oltp)
Financial And E-Commerce
Database Analytics

TECHNICAL INFORMATION :
Interface : Sas 12gbps Supports Wideport @ 12gbps
Storage Capacity : 400 Gb
Form Factor : 2.5-Inch
Flash Memory Technology : 3d Tlc Nand
Annualized Failure Rate (Afr) : 0.35 %
Mtbf : 2.5 Million Hours

PERFORMANCE :
128kb Sequential Read (Max) : 2150 Mbps
128kb Sequential Write (Max) : 2120 Mbps
4kb Random Read (Max) : 440000 Iops
4kb Random Write (Max) : 320000 Iops
Mixed 4kb Random Read/Write (Max 70%R/30%W) : 430000 Iops

PHYSICAL SIZE :
Z-Height (Max) : 15.0 Mm
Dimensions (W X D) : 70.1 X 100.45 Mm
Weight (Typical) : 175 G
