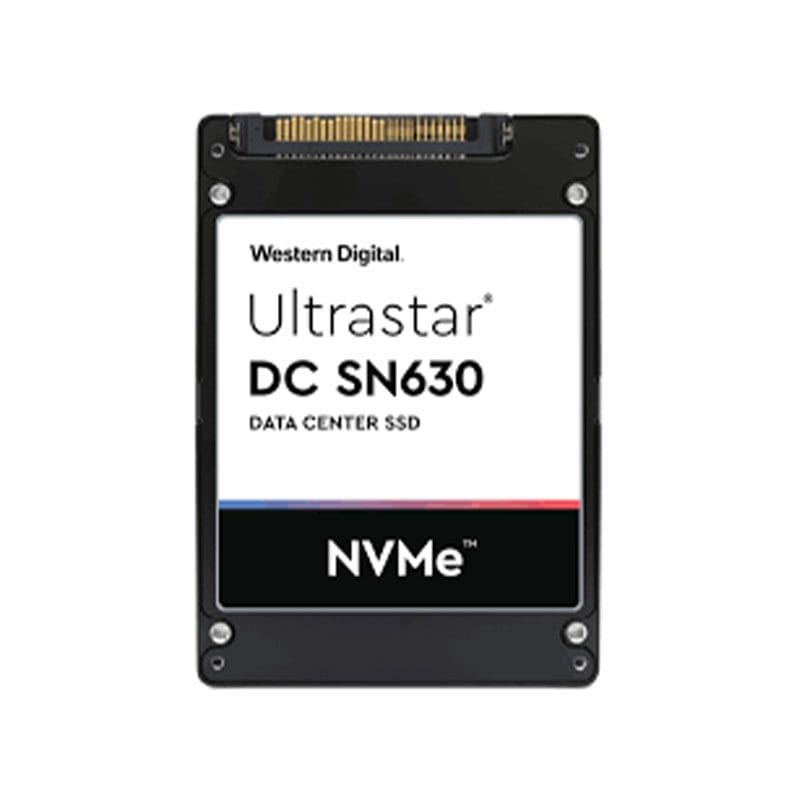

0TS1617 HGST Ultrastar DC SN630 960GB Pcie Gen 3.0 X4 U.2 2.5Inch

0TS1617 Technical Specifications

HGST Ultrastar DC SN630 960GB Pcie Gen 3.0 X4 U.2 2.5Inch Solid State Drive

GENERAL INFORMATION :
Brand : Hgst
Part : 0ts1617
Product Line : Ultrastar Dc Sn630
Product Type : Solid State Drive (SSD)
Product Name : Ultrastar Dc Sn630 960gb Solid State Drive

KEY FEATURES :
Storage Capacity : 960 Gb
Interface : Pcie Gen 3.0 X4 (Compliant To Nvme™ 1.3)
Form Factor : U.2 2.5-Inch Drive
Mtbf : 2 Million Hours

PERFORMANCE :
Sequential Read (Max, 128k) : 2770 Mbps
Sequential Write (Max, 128k) : 970 Mbps
Random Read Iops (Max, 4k) : 277,220 Iops
Random Write Iops (Max, 4k) : 46,410 Iops
Random Mixed R70/W30 (Max, 4k) : 114,520 Iops

PHYSICAL :
Z-Height : 7.00 +0.2/-0.5 Mm
Width : 69.85 +/-0.25 Mm
Length : 100.45 Mm
Weight : 95 G
