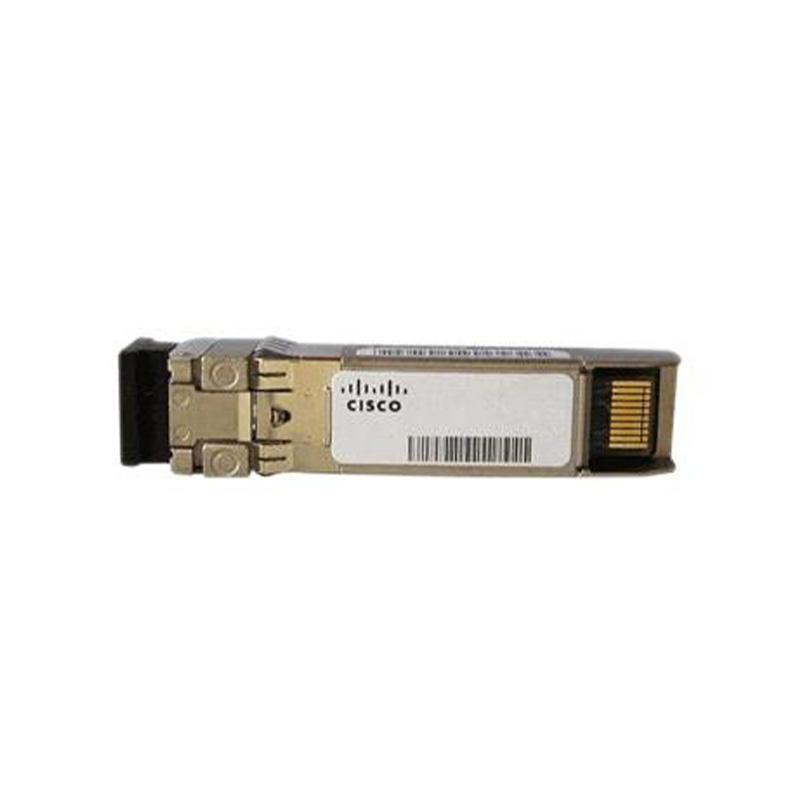

10-3107-01 Cisco 10Gb/s 10GBase-LR Long Range SMF LC SFP+ Transceiver
10-3107-01 Overview
The Cisco is a high-quality 10GBase-LR SFP+ transceiver designed for long-distance, high-speed network connections over single-mode fiber. Operating at a 1310nm wavelength, it supports transmission ranges of up to 10 kilometers, making it ideal for inter-building or metro network links. Its compact, hot-pluggable SFP+ form factor ensures easy installation and replacement without service downtime. Built to meet stringent IEEE and MSA standards, this module offers reliable performance, low latency, and energy efficiency for demanding networking environments.
10-3107-01 Technical Specifications
Cisco 10Gb/s 10GBase-LR Long Range SMF LC SFP+ Transceiver
Manufacturer: Cisco
Manufacture Part Number: 10-3107-01
Product Type: SFP+ Optical Transceiver Module
Data Rate: 10Gbps
Transmission Standard: 10GBase-LR (Long Range)
Fiber Type: Single-Mode Fiber (SMF)
Connector Type: Duplex LC
Wavelength: 1310nm
Maximum Distance: Up to 10km over SMF
Form Factor: SFP+
Hot-Pluggable: Yes
Application: Long-distance 10GbE links in enterprise, data center, and telecom networks
Compliance: IEEE 802.3ae, SFP+ MSA, RoHS
