100-505957 Technical Specifications

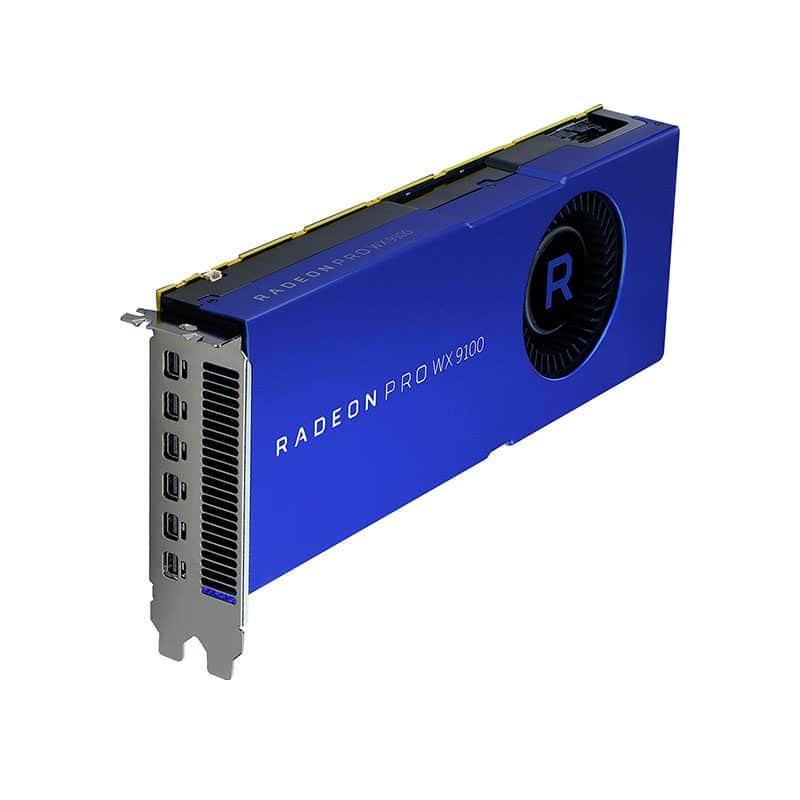

AMD Radeon Pro WX 9100 Graphics Card
GPU Model AMD Radeon Pro WX 9100
Stream Processors 4096
Boost Clock Speed 1500 MHz
Floating Point Performance Single Precision Performance: 12.3 TFLOPS
Half Precision Performance: 24.6 TFLOPS
Double Precision Performance: 768.00 GFLOPS
Interface PCI Express 3.0 x16
Supported APIs OpenCL: 2
OpenGL: 4.5
DirectX: 12.1
Vulkan: 1
Memory
Memory Speed 945 MHz (Effective)
Memory Configuration 16 GB
Memory Interface HBM2
Memory Interface Width 2048-Bit
Memory Bandwidth 484 GB/s
Display Support
Display Connectors 6 x Mini DisplayPort 1.4
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Power Requirements
Max Power Consumption 230 W
PCI Power Connectors 1 x 8-Pin
1 x 6-Pin
Dimensions
Length 12.00″ / 304.80 mm
Width Dual-Slot
General
Cooler Type Blower-Style Fan
Lighting None
