100-506085 Technical Specification

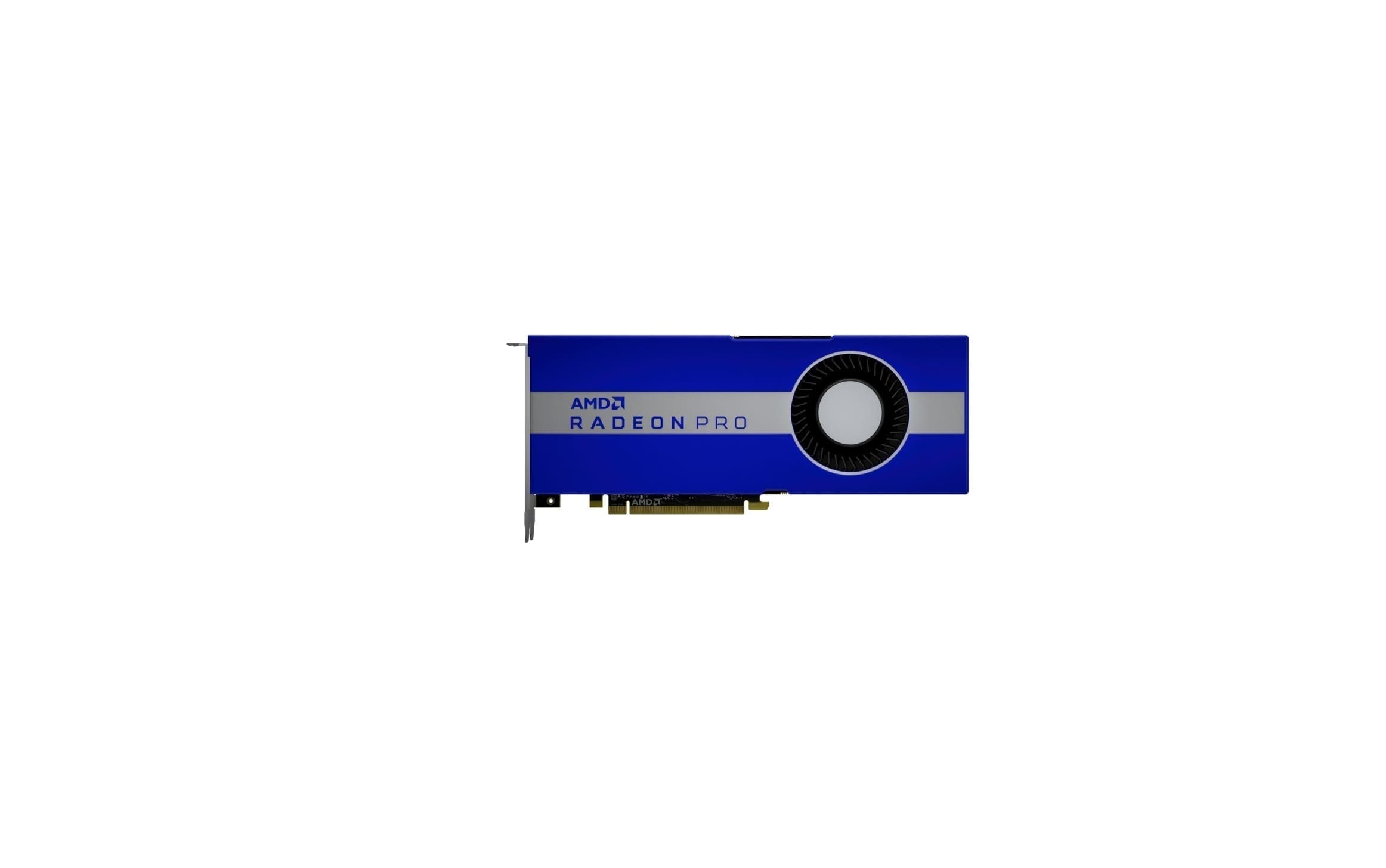

AMD Radeon Pro W5700 100-506085 8GB 256-bit GDDR6 PCI Express 4.0 x16 Workstation Video Card
Model
Brand
AMD
Model
100-506085
Interface
Interface
PCI Express 4.0 x16
Chipset
Chipset Manufacturer
AMD
GPU
Radeon Pro W5700
Stream Processors
2304 Stream Processing Units
Memory
Memory Size
8GB
Memory Interface
256-bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.6
Ports
DisplayPort
5 x Mini-DisplayPort 1.4
Other Ports
1 x USB Type-C
Details
Cooler
With Fan
System Requirements
Power Consumption: <220W
Features
Features
AMD 7nm “RDNA” Architecture
Professional Application Certifications
10-bit Display Bit Depth Support
AMD DirectGMA Support
Form Factor & Dimensions
Dimensions (L x H)
10.50″ x 4.40″
Packaging
Package Contents
1 x AMD Radeon Pro W5700 Graphics Card
2 x Mini-DisplayPort to DisplayPort Adapter
1 x Mini-DisplayPort to Single-Link DVI Adapter
1 x Board Extension Bracket for OEM Chassis (bent)
1 x Board Extension Bracket for OEM Chassis (flat)
