Refurbished 15454-10EX-L1-C Technical Specifications

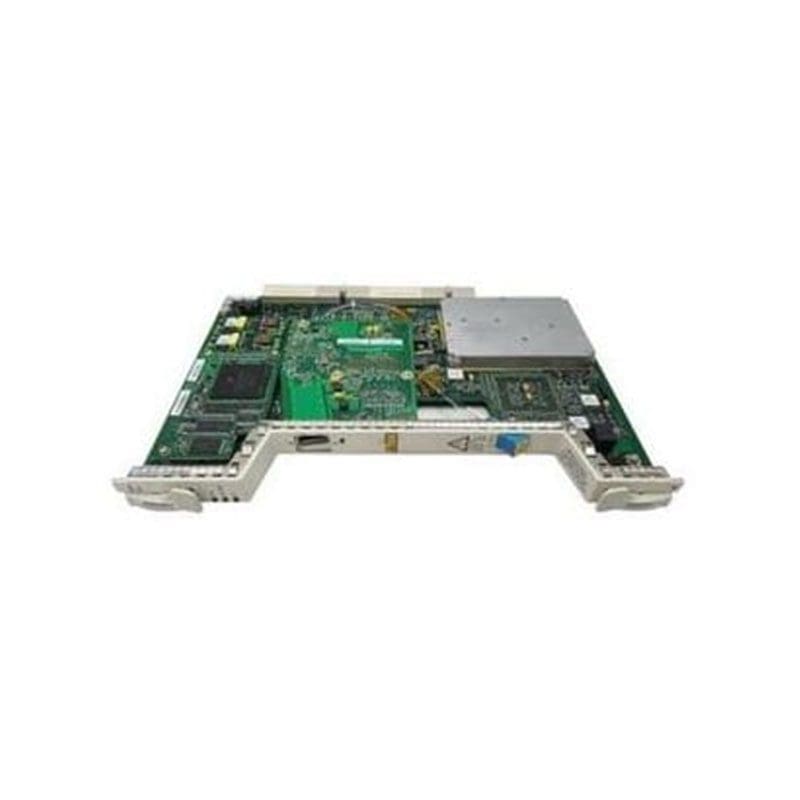

Cisco 4x 2.5-Gbps Muxponder Card EFEC Full C-Band Tunable expansion module
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco
Model :4x 2.5-Gbps Muxponder Card EFEC Full C-Band Tunable
Packaged Quantity :1
Line Properties
Line Rate :OC-48/STM-16
Networking
Type :Expansion module
Form Factor :Plug-in module
Connectivity Technology :Wired
Cabling Type :Fiber optic
Data Link Protocol :SONET/SDH
Data Transfer Rate :2.5 GBps
Status Indicators :Fail, Link/activity, Standby
Ports
Qty :4
Type :OC-48/STM-16
Interface Provided
Interfaces :4 x OC-48/STM-16 – LC – x 2
Miscellaneous
Color Category :White
Refurbished :Refurbished
Compliant Standards :CDRH, CISPR 22, CISPR 24, EMC Class A, EN 300 386, EN55022, EN55024, ETS300019-2-1, ETS300019-2-2, ETS300019-2-3, FCC CFR47 Part 15, G.975, GR-1089-CORE, GR-253-CORE, GR-63-CORE, ICES-003 issue 3, IEC 60825-1, IEC60950/EN60950, ITU-T G.691, ITU-T G.709, UL 60950
Environmental Parameters
Min Operating Temperature :23 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 95%
Compatibility
Compatible With :Cisco ONS 15454, 15454 32-Channel 100Mhz Demultiplexor – L Band, 15454 32-Channel Demultiplexer, 15454 4-Channel Multiplexer/Demultiplexer, 15454 Enhanced Optical Booster Amplifier Module, 15454 Optical Filter, 15454 SONET 12-Port DS-3 Transmultiplexer Card
