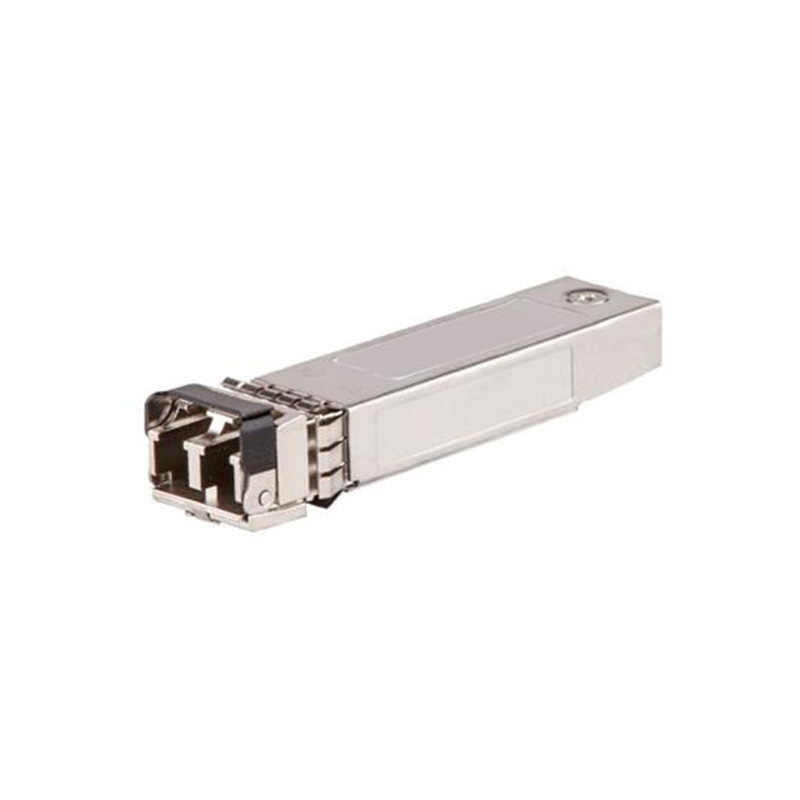

1990-4485 HP 10Gb/s 10GBase-LRM Transceiver Module
1990-4485 Overview
The HP 1990-4485 10GBase-LRM SFP+ transceiver provides reliable 10Gbps connectivity over multi-mode fiber with extended reach compared to traditional short-range optics. Operating at 1310nm, it supports up to 220 meters on legacy OM1/OM2 fiber, making it especially useful in environments where older cabling infrastructure is still in use. With a duplex LC interface and hot-pluggable SFP+ form factor, this module ensures simple installation and integration into HP switches, servers, and storage platforms. It is a cost-effective solution for enterprises and data centers looking to upgrade to 10GbE performance without fully replacing their existing MMF cabling, offering both compatibility and efficiency for backbone and access layer applications.
1990-4485 Technical Specifications
HP 10Gb/s 10GBase-LRM Multi-Mode Fibre 220m OM2 Duplex LC Connector SFP+ Transceiver Module
Manufacturer: HP
Manufacture Part Number: 1990-4485
Type: SFP+ Transceiver Module
Data Rate: 10Gbps
Standard: 10GBase-LRM (Long Reach Multimode)
Fiber Type: Multi-Mode Fiber (MMF) – optimized for OM1, OM2, OM3, OM4
Wavelength: 1310nm
Maximum Distance: Up to 220m on OM1/OM2, longer reach on OM3/OM4
Connector Type: Duplex LC
Form Factor: Hot-pluggable SFP+
Power Consumption: Low power design
Protocol Support: 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE)
Compliance: IEEE 802.3aq, RoHS
