220-P5-0850-X1 Technical Specifications

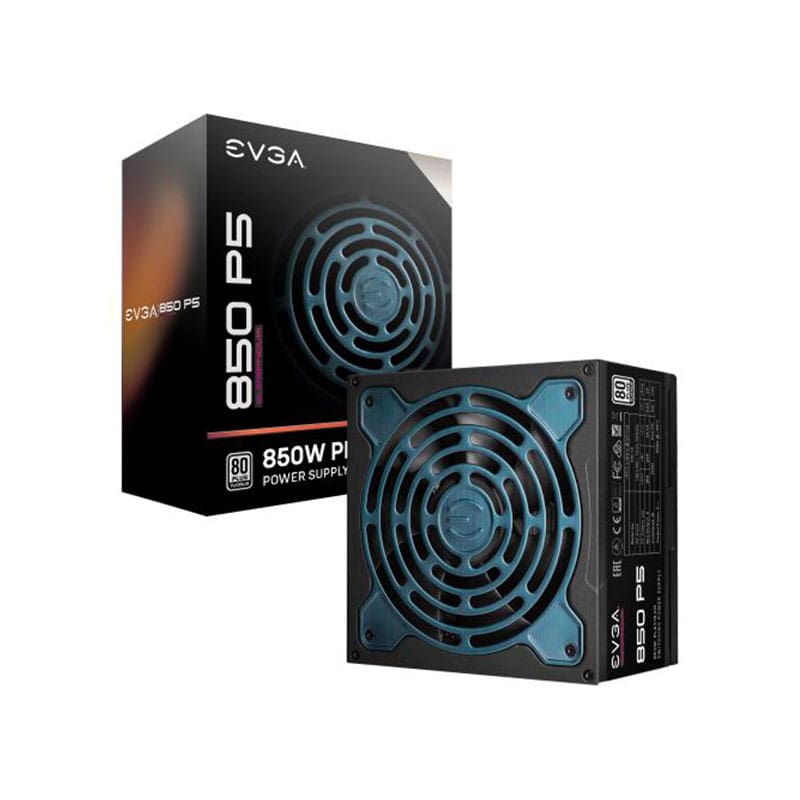

EVGA SuperNOVA P5 850 Watts 120V AC 80 Plus Platinum Internal Power Supply
Specification Compliance: ATX12V/EPS12V
Efficiency: 94%
Number of Fans: 1
Modular: Yes
ATI CrossFire Supported: Yes
NVIDIA SLI Supported: Yes
Power Description
Number of +12V Rails: 1
Input Voltage: 230 V AC,120 V AC
Output Voltage: 5 V @ 3 A,3.3 V @ 24 A,5 V @ 24 A,12 V @ 70.8 A,-12 V @ 0.5 A
Output Power: 850 W
Physical Characteristics
Form Factor: Compact, Internal
Height: 3.4
Width: 5.9
Depth: 5.9
Environmentally Friendly: Yes
Environmental Certification: RoHS,WEEE,ErP Lot 3,80 Plus Platinum
