2244300-R Technical Specifications

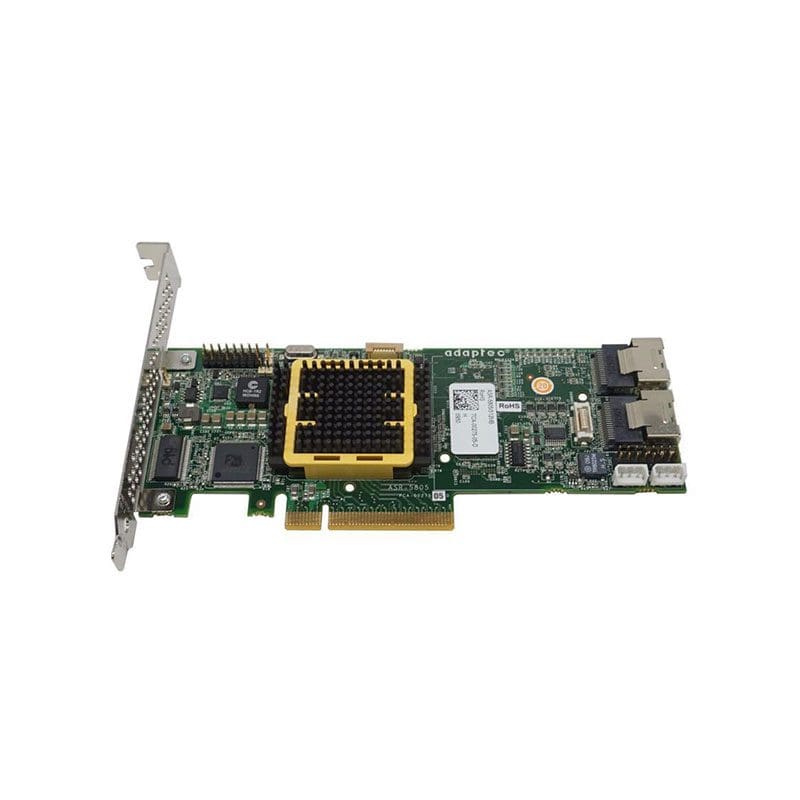

Adaptec 5805 512MB 8-Port SATA/SAS RAID PCI-E Low-profile Storage Controller
Manufacturer Part Number 2244300-R
Brand Name Microsemi
Product Type SATA Controller
Technical Information
Host Interface PCI Express x8
Controller Type Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
1E
5
5EE
6
10
50
60
JBOD
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
Environmentally Friendly Yes
Environmental Certification RoHS
