2266800-R Technical Specifications

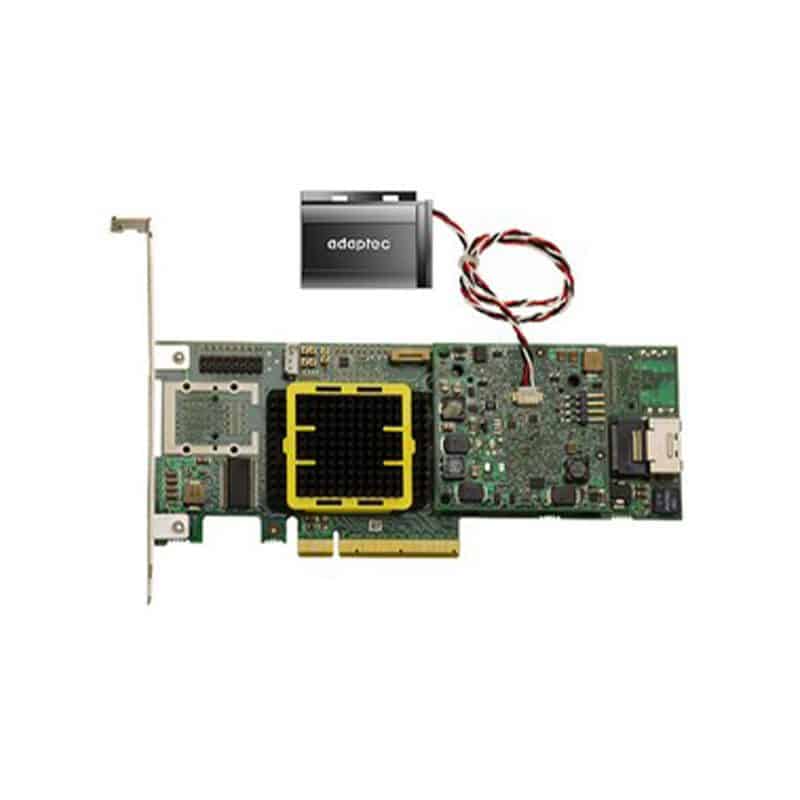

Adaptec 5Z 5405Z 4-Port SAS RAID Controller 512MB DDR2 PCI Express 300MBps 1 x SFF-8087 Mini-SAS Internal
Manufacturer Part Number 2266800-R
Brand Name Microsemi
Product Type SAS Controller
Technical Information
Host Interface PCI Express
RAID Supported Yes
RAID Levels 0
1
1E
5
5EE
6
10
50
60
JBOD
Interfaces/Ports
Total Number of SAS Ports 1
Number of SAS Ports (Internal) 1
SAS Connector Details 1 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Environmentally Friendly Yes
Environmental Certification RoHS
