2270900-R Technical Specifications

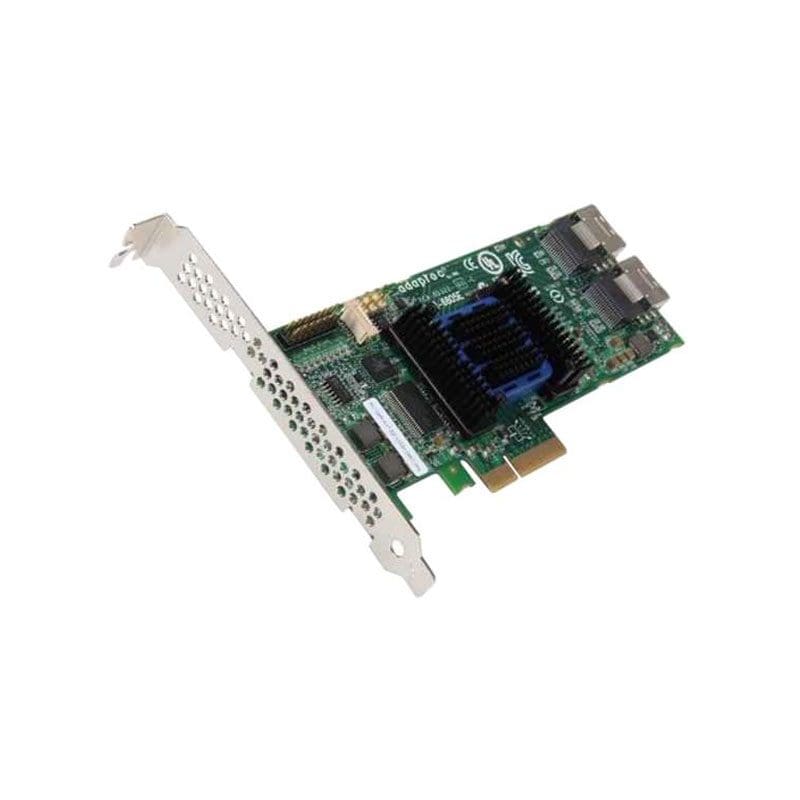

Adaptec 6805E 128MB Cache SATA 6.0Gbps / SAS 6.0Gbps PCI-Express x4 RAID Storage Controller
Manufacturer Part Number 2270900-R
Brand Name Microsemi Adaptec
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x4
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
10
1E
JBOD
Memory
Cache Memory 128 MB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (Internal) 8
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.1″
Form Factor Plug-in Card
