2271100-R Technical Specifications

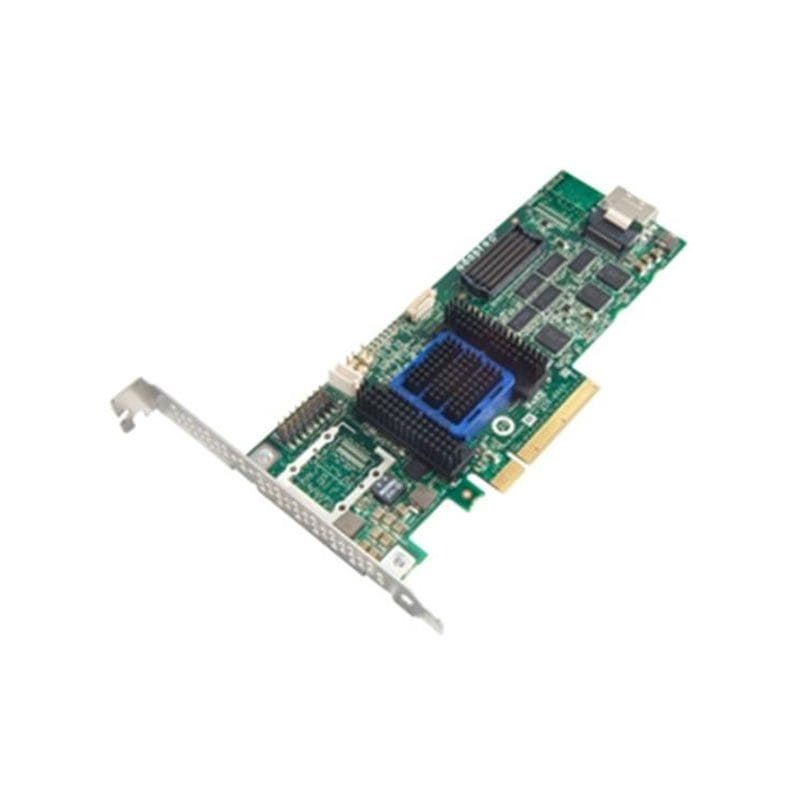

Adaptec 4 Channel SATA-600 / SAS 2.0 Regular Profile ASR-6405 Storage Controller (RAID)
Manufacturer Part Number 2271100-R
Brand Name Microsemi Adaptec
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type Serial ATA/600
6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
1E
5
5EE
6
10
JBOD
Interfaces/Ports
Total Number of SAS Ports 4
Number of SAS Ports (Internal) 4
SAS Connector Details 1 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
