2273600-R Technical Specifications

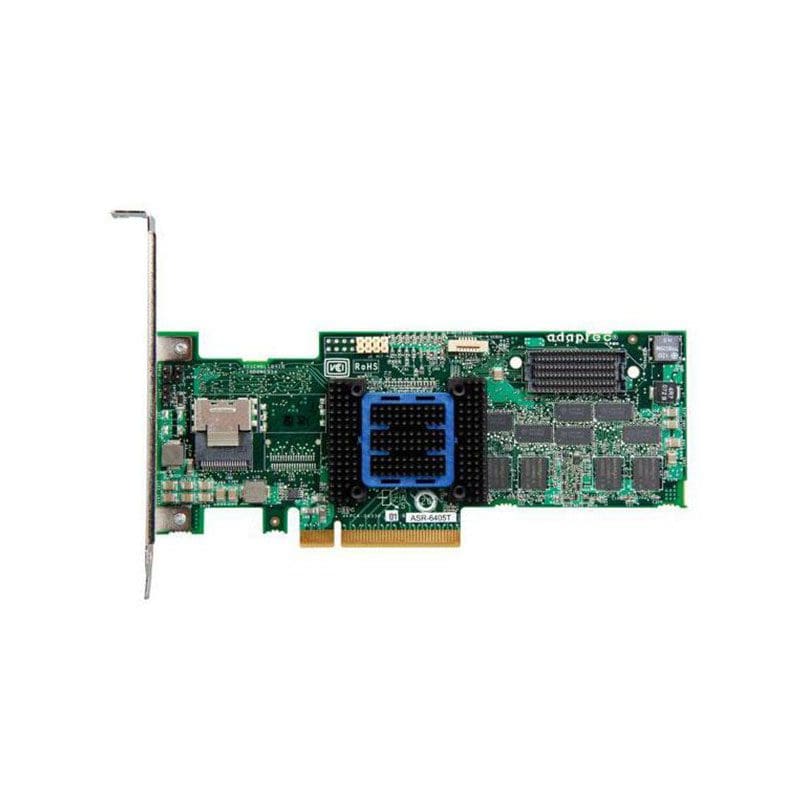

Adaptec maxCache 2.0 6805TQ 512MB Cache SATA 6.0Gbps / SAS 6.0Gbps PCI-Express x8 RAID Storage Controller
Manufacturer Part Number 2273600-R
Brand Name Microsemi
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
RAID Supported Yes
RAID Levels 0
1
1E
5
5EE
6
10
50
60
Data Backup Type Battery Backup
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
