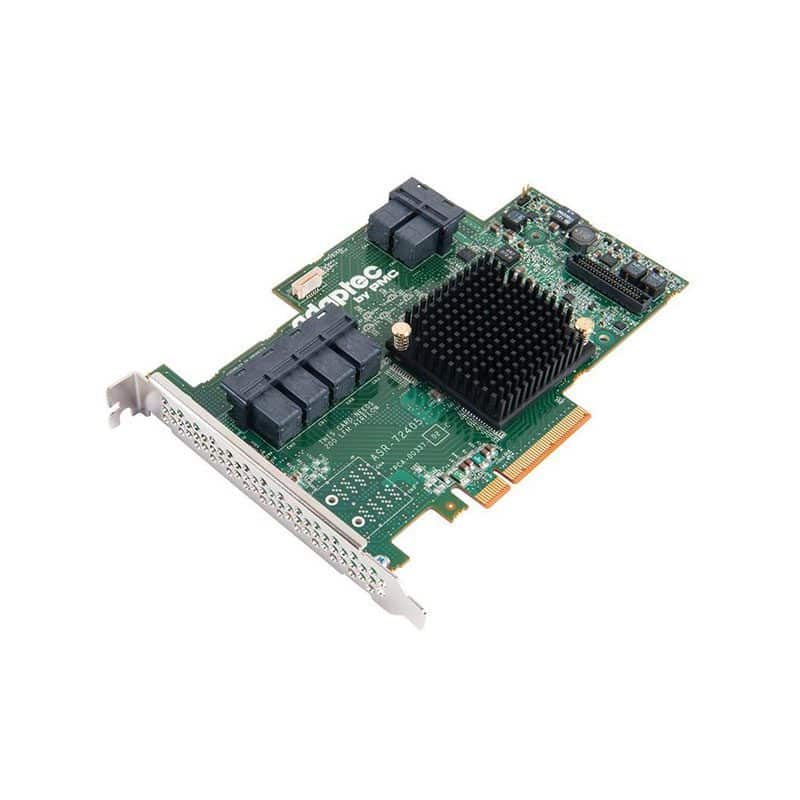

2274900-R Adaptec 72405 SAS/SATA RAID Controller Serial Attached

2274900-R Technical Specifications

Adaptec 72405 24-Ports SAS/SATA RAID Controller Serial Attached SCSI (SAS) PCI Express 3.0 x8 Plug-in Card RAID Supported 0, 1, 1E, 5, 6, 10, 50, 60 RAID Level 1GB

Manufacturer Part Number 2274900-R
Brand Name Microsemi Adaptec
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
RAID Supported Yes
RAID Levels 0
1
1E
5
6
10
50
60
Interfaces/Ports
Total Number of SAS Ports 6
Number of SAS Ports (Internal) 6
SAS Connector Details 6 SFF-8643
Physical Characteristics
Height 4.2″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Environmentally Friendly Yes
Environmental Certification RoHS
