2290200-R Technical Specifications

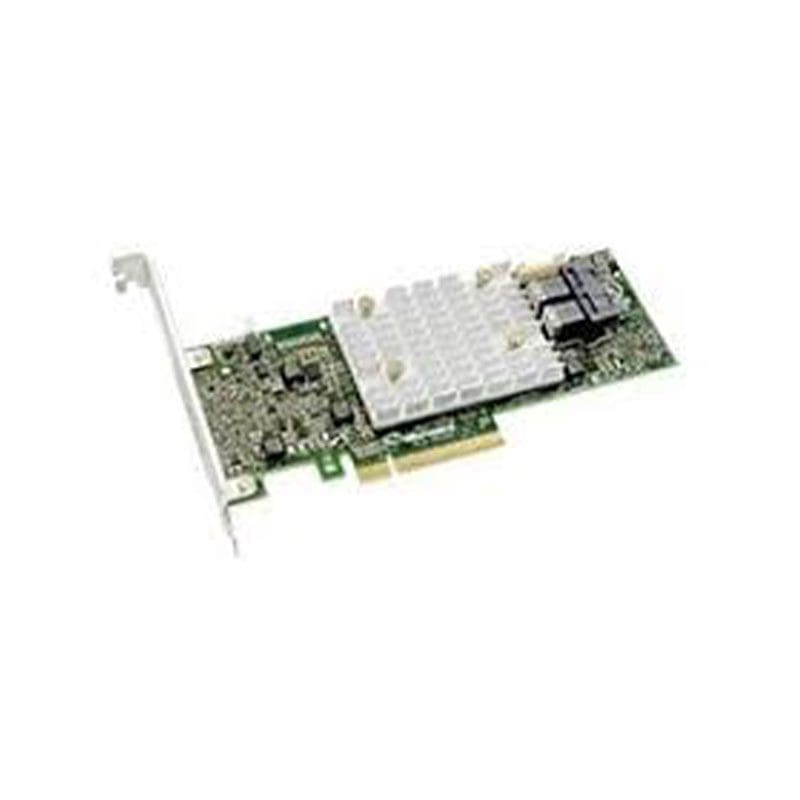

Microchip Adaptec SmartRAID 3152-8i – storage controller (RAID) – SATA 6Gb/
Manufacturer
Adaptec
Brand
Microchip
Product Line
Microchip Adaptec SmartRAID
Model
3152-8i
Packaged Quantity
1
General
Product Type
Storage controller (RAID)
Storage Controller
Form Factor
Plug-in card
Host Bus
PCIe 3.0 x8
Low Profile
Low profile
Data Transfer Rate
12 Gbit/s
Interface
SATA 6Gb/s / SAS 12Gb/s
Channel Qty
8
Supported Devices
Disk array (RAID), Tape drive
Max Storage Devices Qty
256
Buffer Size
2 GB
RAID Level
10ADM, 1ADM, RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Interface Provided
Interfaces
2 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
Power Device
Type
None
System Requirements
OS Required
Citrix XenServer, Debian Linux, FreeBSD, Microsoft Windows, Red Hat Linux, SunSoft Solaris, SuSe Linux, Ubuntu, VMware ESXi
Miscellaneous
Color Category
Green
Included Accessories
Low-profile bracket
MTBF
1,370,000 Hours
Compliant Standards
C-Tick, FCC, KCC, RoHS, UL, VCCI
Features
4K Native Sector support, Background RAID Initialization, Bootable RAID Array support, Dynamic caching algorithm, Dynamic sector repair, Flash backup module, HBA Mode, Native Command Queuing (NCQ), Online Capacity Expansion (OCE), RAID Level Migration, S.M.A.R.T. support, SCSI Enclosure Services (SES), SecureBoot, Staggered Drive Spin Up
Dimensions & Weight
Depth
6.6 inch
Height
2.5 inch
Service & Support
Type
3-year warranty
Service & Support Details
Service & Support
Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
131 degree Fahrenheit
