2291700-R Technical Specifications

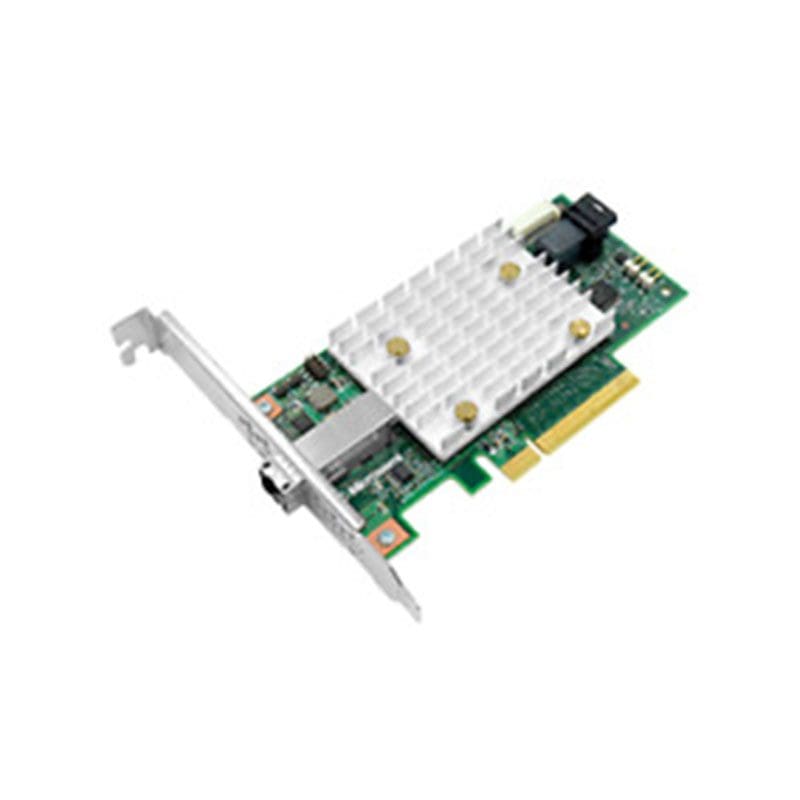

Microsemi Adaptec SmartRAID 3101-4i Storage Controller (RAID) SATA
Brand : Microsemi
Manufacturer Part Number : 2291700-R
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Buffer Size 1 GB
Supported Devices Tape drive, disk array (RAID)
Channel Qty 4
Max Storage Devices Qty 256
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, 1ADM, 10ADM
General
Device Type Storage controller (RAID) – plug-in card – low profile
Host Bus PCIe 3.0 x8
Expansion / Connectivity
Interfaces 1 x SATA 6Gb/s / SAS 12Gb/s – 4 x Mini SAS HD (SFF-8643) (internal)
