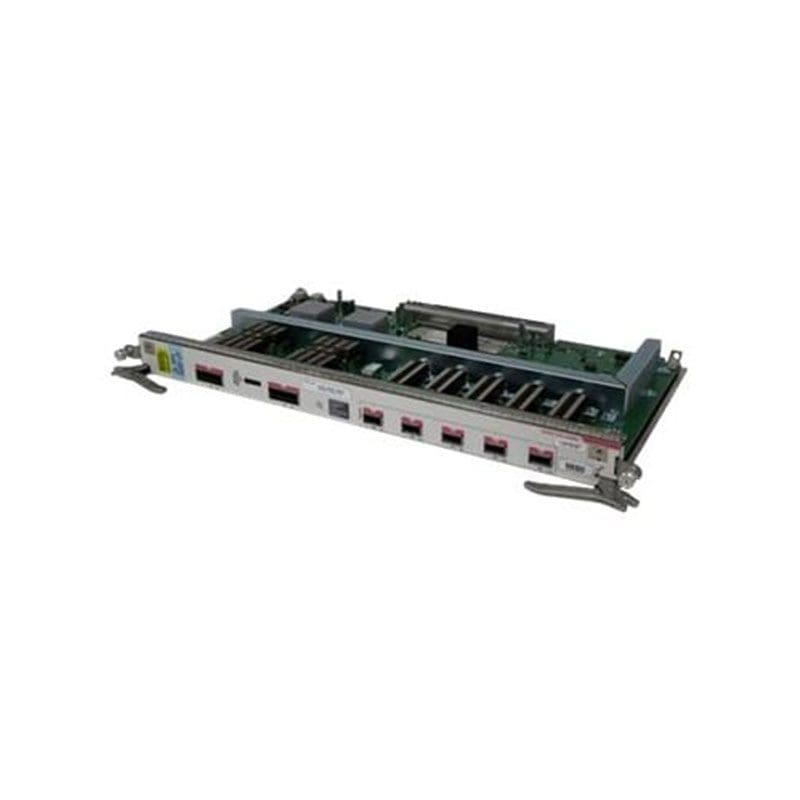

Refurbished 2X100GE-FLEX-40 Cisco CRS LAN/OTN Flexible Module

Refurbished 2X100GE-FLEX-40 Technical Specifications

Cisco CRS LAN/OTN Flexible Interface Module expansion module

Networking
Ports 100 Gigabit CPAK x 2 + 40 Gigabit QSFP+ x 5
Connectivity Technology Wired
Data Link Protocol 40 Gigabit Ethernet, 100 Gigabit Ethernet
Remote Management Protocol SNMP, CLI
Features Flow control, full duplex capability, Jumbo Frames support
Compliant Standards IEEE 802.2, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ba
Dimensions & Weight
Width 1.8 in
Depth 11.2 in
Height 20.6 in
Weight 8.82 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 85%
General
Device Type Expansion module
Form Factor Plug-in module
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet – CPAK ¦ 5 x 40Gb Ethernet – QSFP+
