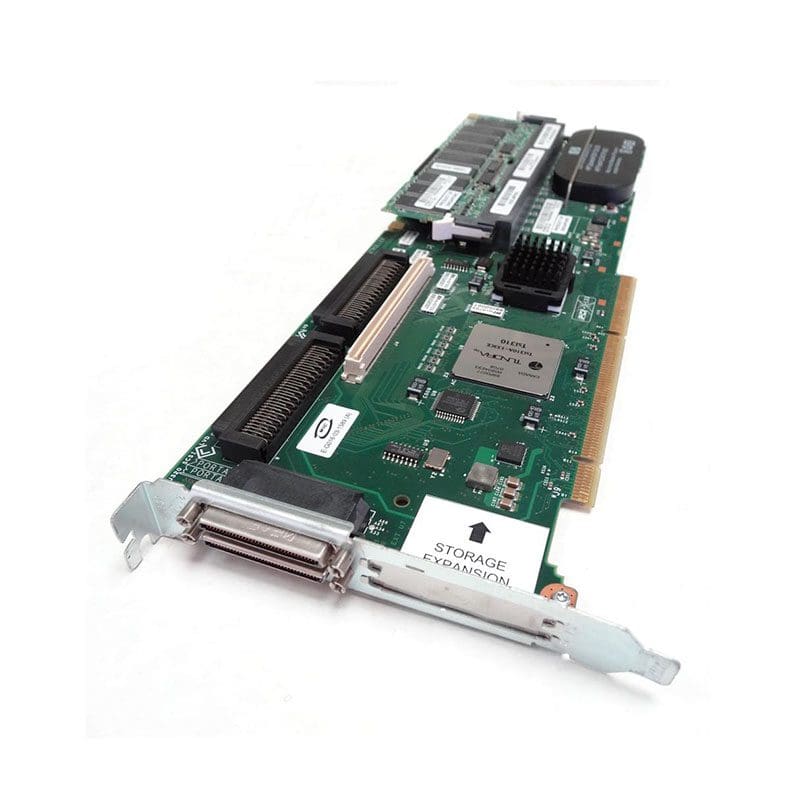

309520-001 HP Smart Array Cache Ultra-320 RAID Controller Card

309520-001 Technical Specifications

HP Smart Array 6402 128MB Cache Ultra-320 SCSI Dual Channel PCI-X 0/1/5/10 RAID Controller Card

Manufacturer Part Number 309520-001
Brand Name HPE
Product Type SCSI Controller
Technical Information
Host Interface PCI-X
Controller Type Ultra320 SCSI
RAID Supported Yes
RAID Levels 0
1
1+0
5
ADG
Interfaces/Ports
Total Number of SCSI Ports 4
Number of SCSI Ports (Internal) 2
Number of SCSI Ports (External) 2
SCSI Connector Details 4
Physical Characteristics
Height 4.2″
Width 12.3″
Thickness 0.7″
Form Factor Plug-in Card
Weight (Approximate) 3.12 lb
