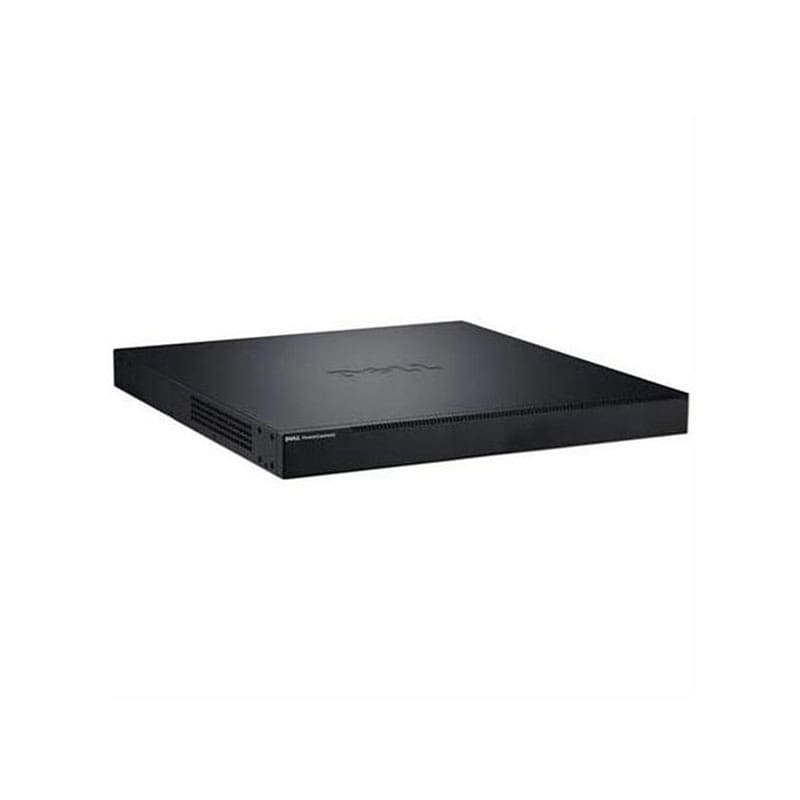

332-0876 Dell R1-2401 1GB Ethernet Switch Module
332-0876 Overview
Dell R1-2401 1GB Ethernet Switch Module. This Dell R1-2401 1GB Ethernet Switch Module is a network switch module that is designed to be used in the Dell PowerEdge VRTX chassis. This module is used to provide network connectivity to the servers that are installed in the VRTX chassis.
$223
Buy Now
332-0876 Technical Specifications
Dell R1-2401 1GB Ethernet Switch Module
Manufacturer: Dell
Product Type: Expansion Module
Technical Information
Switching capacity: 48 Gbps
Forwarding rate: 36 million packets per second
MAC address table size: 8K entries
VLANs: Up to 256 VLANs
Quality of Service (QoS): Yes
Jumbo frames: Up to 9K bytes
Environmental Specifications
Operating temperature: 32°F to 113°F (0°C to 45°C)
Storage temperature: -40°F to 158°F (-40°C to 70°C)
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing
Power Specifications
Power consumption: 22.5W
Power input: 12V DC
Power supply: External AC adapter (100-240V AC, 50-60Hz)
Dimensions & Weight
Height: 1.1 inch
Width: 2.2 inch
Depth: 9.5 inch
Weight: 3 LBS
