338-BHJW Technical Specifications

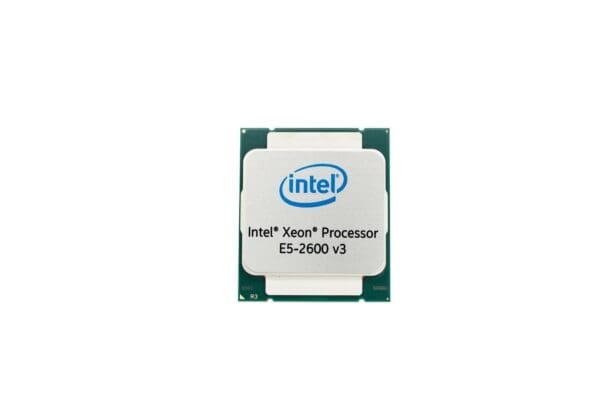

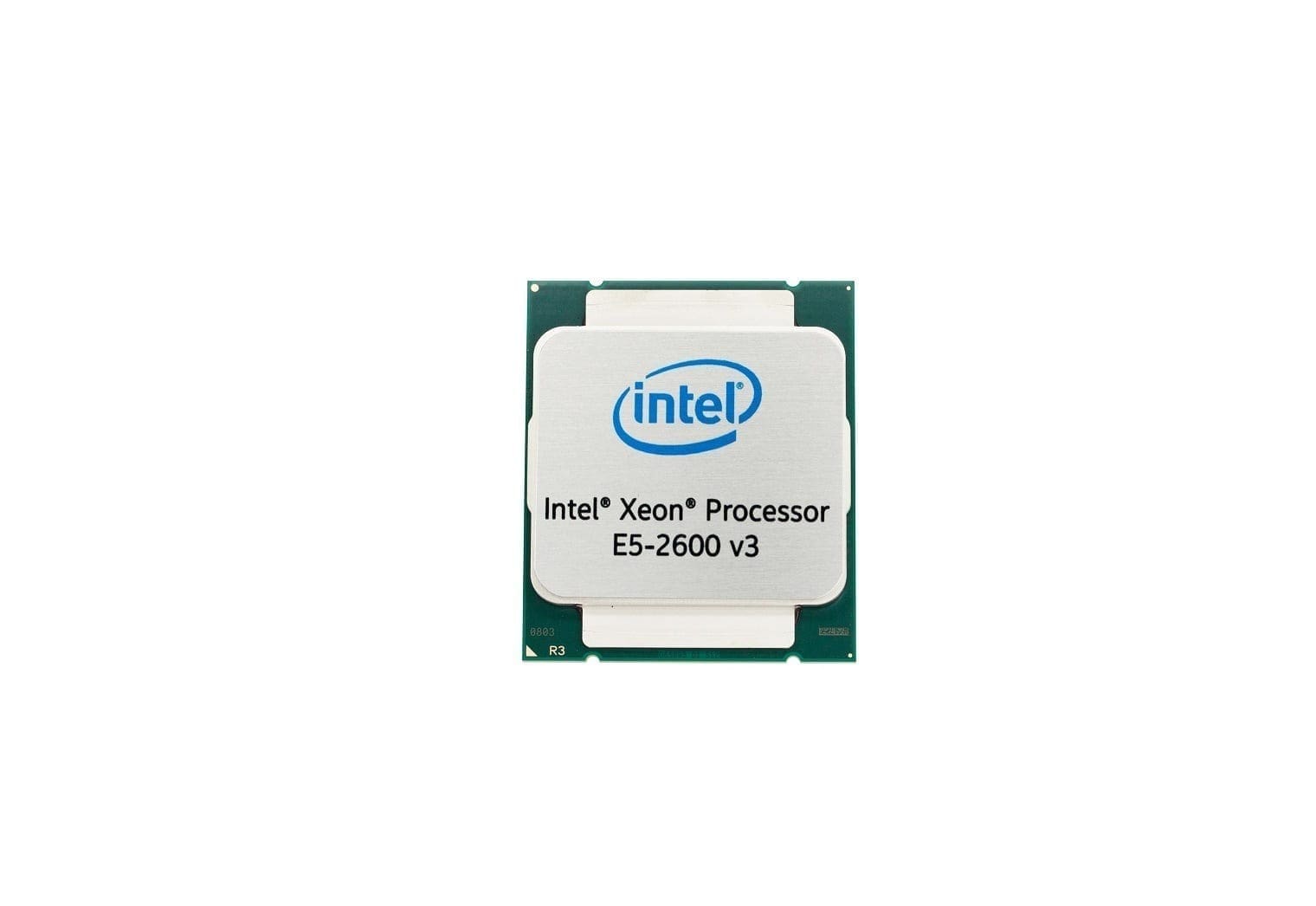

Dell 2.40GHz 8.00GT/s QPI 20MB L3 Cache Intel Xeon E5-2630 v3 8 Core Processor
Brand Intel
Part No. 338-BHJW
Processor Type Server
Processor Family E5-2600 v3
Series Xeon Processor
Core Model Type/ProcNo. E5-2630 v3
Processor Code Name Haswell
Core Stepping R2
Manufacturing Technology 22 nm
CPU ID String 306F2
# of Cores 8
# of Threads 16
Clock Speed 2.40 GHz
L3 Cache Size 20 MB
Front Side Bus / QuickPath Interconnect 8.00 GT/s QPI
Thermal Power 85 Watts
VID Voltage Range 0.65V–1.30V
CPU Socket Type LGA 2011-3
