338-BSHE Technical Specifications

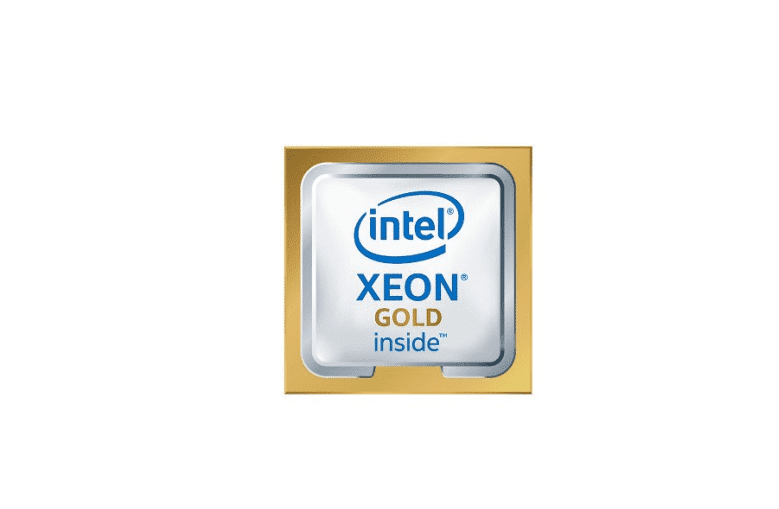

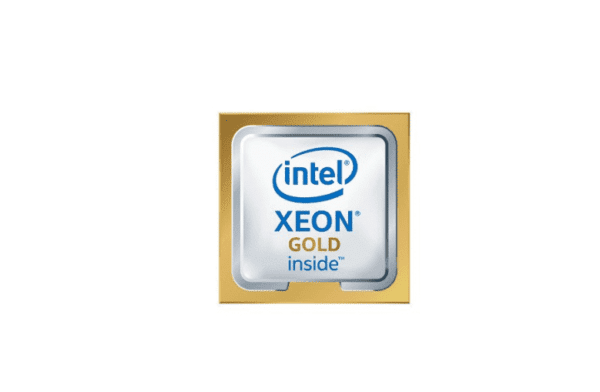

Dell Intel Xeon 18-Core Gold 6240 2.60GHZ 25MB Smart Cache 10.4GT/S UPI Speed Socket FCLGA3647 14NM 150W Processor
General Information :
Product Type : Server Processor
Manufacturer Part Number : 338-BSHE
Product Model : Gold 6240
Technical Information :
Processor Core : 18-Core
Clock Speed : 2.60GHZ
Max Turbo Frequency : 3.90GHZ
Ultrapath Interconnect(Upi) Speed : 10.4gt/S
No. Of Upi Links : 3
Instruction Set : 64-Bit
Instruction Set Extensions : Intel® Avx-512
Cache Memory Detail :
• Smart Cache : 25MB
Lithography : 14NM
Max Thermal Design Power (Tdp) : 150w
Compatible Processor Socket : Fclga3647
MEMORY SPECIFICATIONS :
Max Memory Size (Dependent On Memory Type) : 1tb
Memory Types : Ddr4-2933
Maximum Memory Speed : 2.9GHZ
Max No. Of Memory Channels : 6
Ecc Memory Supported : Yes
