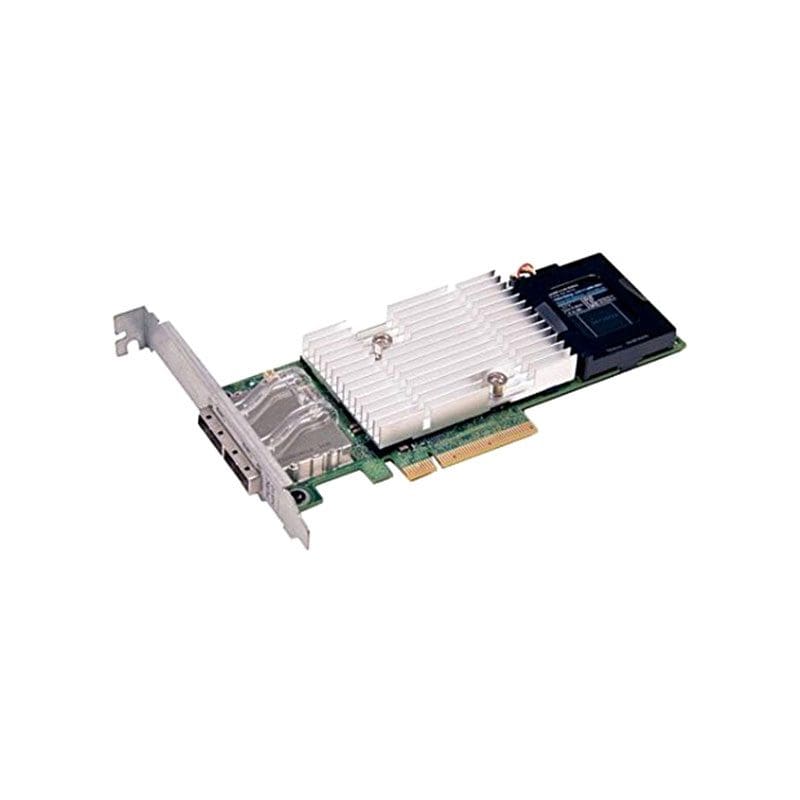

342-3537 Dell Perc H810 6gb/s Pci-express 2.0 Sas Raid Controller

342-3537 Technical Specifications

Dell Perc H810 6gb/s Pci-express 2.0 Sas Raid Controller With 1gb Nv Cache

Manufacturer Part Number 342-3537
Brand Name Dell-IMSourcing
Product Type SAS Raid Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
10
5
50
6
60
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (External) 2
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
