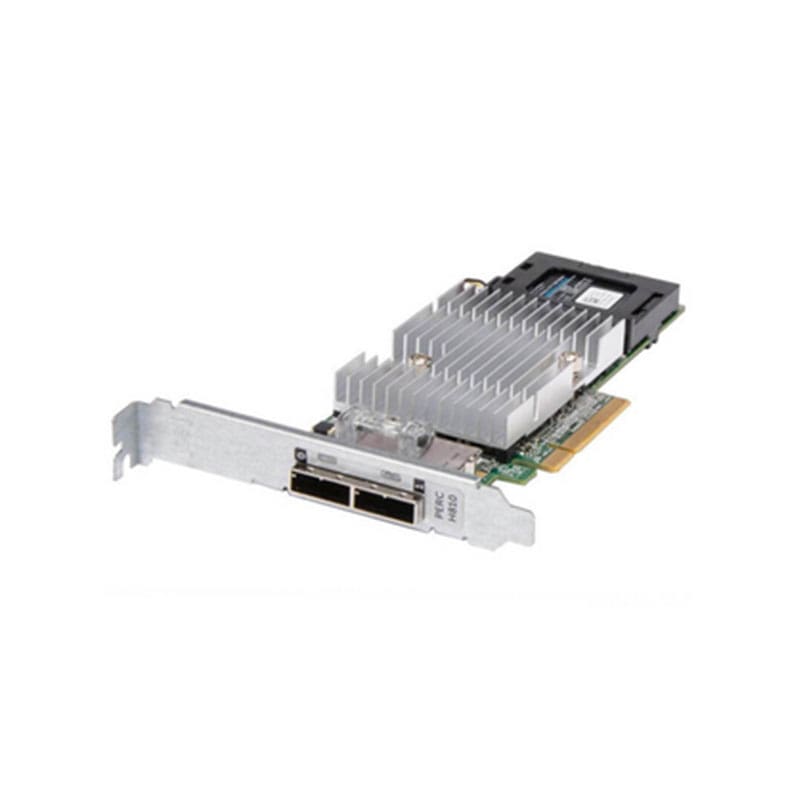

342-3891 DELL Perc H810 6gb/s Pci-express 2.0 Sas Raid Controller

342-3891 Technical Specifications

DELL Perc H810 6gb/s Pci-express 2.0 Sas Raid Controller With 1gb Nv

Manufacturer Part Number 342-3891
Brand Name Dell
Product Type SAS Controller
Technical Information
Host Interface PCI Express 2.0 x8
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Data Backup Type NV Cache
Memory
Cache Memory 1 GB
Interfaces/Ports
Total Number of SAS Ports 8
Number of SAS Ports (External) 8
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 2.5″
Depth 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
Linux
