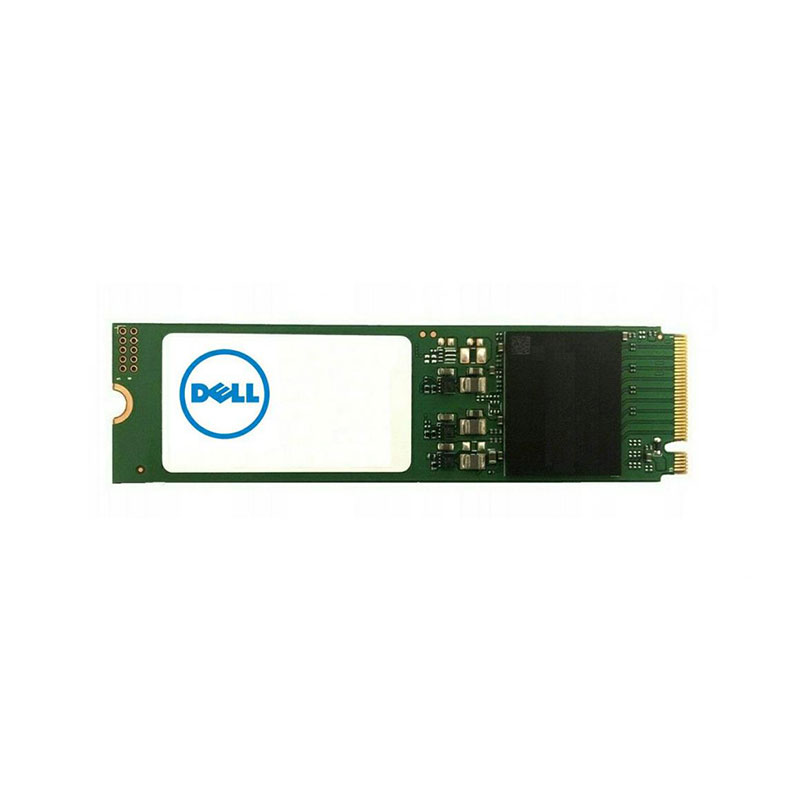

345-BHDN Dell 480gb Sata-6gbps M.2 2280 Solid State Drive Ssd
345-BHDN Overview
The Dell 345‑BHDN is a 480 GB enterprise-class solid-state drive (SSD) designed specifically for Dell PowerEdge servers (14G or 15G) that use a BOSS (Boot Optimized Storage Solution) controller card. It comes in the M.2 2280 form factor with B+M keying and connects via the SATA 6 Gbps interface, making it suitable for read-intensive workloads, such as boot drives or applications that require consistent read performance.
This SSD is built with Triple-Level Cell (TLC) 3D NAND flash memory, which provides a good balance of capacity, endurance, and cost efficiency for enterprise environments. While it operates at SATA-level speeds—with sequential reads up to approximately 560 MB/s.
345-BHDN Technical Specifications
Dell 480gb Sata-6gbps M.2 2280 For Boss Card Enterprise Class Triple Level Cell Read-intensive Tlc 3d Nand Solid State Drive Ssd (key B+m 2280) For 14g Or 15g Poweredge Server
Model number: 345-BHDN
Storage capacity: 480 GB
Drive type: Internal solid state drive
Class: Enterprise‑class (server‑grade)
Interface
Connection type: SATA III (6 Gb/s)
Form factor: M.2 2280
Connector key: B+M key (fits SATA M.2 slots)
Designed for use with BOSS controller cards in Dell PowerEdge 14G/15G servers
Performance
Maximum sequential read speed: around 560 MB/s
Maximum sequential write speed: around 490 MB/s
Typical performance for a SATA‑6 Gb/s SSD
Memory and Technology
Flash type: 3D NAND Triple‑Level Cell (TLC)
Optimized for read‑intensive workloads (common in servers)
Physical
Format: M.2 2280 (about 80 mm long)
Keying: B+M key (compatible with SATA slots that support M.2 SATA)
