Refurbished 370596-001 Technical Specifications

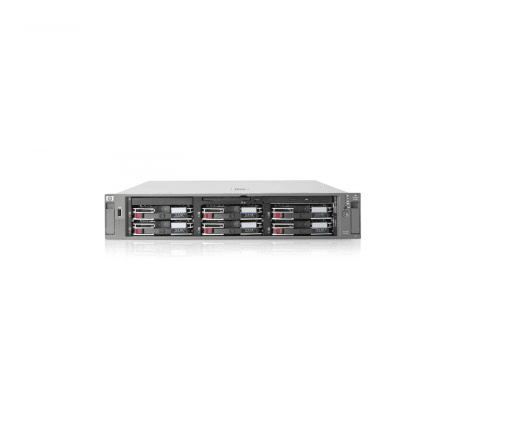

HP Proliant DL380 G4 1X Intel Xeon 3.2GHz, 1GB RAM, NC7782 Gigabit Network Adapter, Ultra320 Smart Array 6I Controller, 1X 575W PS 2U Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 370596-001
Product Name: Proliant Dl380 Gen4 – 2u Rack mount Server
PROCESSOR & CHIPSET :
Cpu : Intel Xeon 3.2 Ghz
64-Bit Computing : Yes
Installed Cpu Qty : 1
Max Cpu Qty : 2
Cpu Upgradability : Upgradable
Cpu Socket : Socket 604
Chipset Type : Intel E7520
Front Side Bus : 800 Mhz
CACHE MEMORY :
Cache Memory Type: L2 Cache
Installed Size: 1 Mb
Cache Per Processor: 1 Mb
MEMORY:
Installed Ram Size : 1 Gb (2 X 512mb) / 16 Gb (Max).
Technology: Ddr2 Sdram – Advanced Ecc.
Memory Speed: 400 Mhz.
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin.
Features: Registered.
Upgrade Rule: 2 Modules At A Time.
STORAGE :
Hard Drive : None
Optical Storage Type :
Type : Cd-Rom – Ide
Read Speed : 24x
Floppy Drive : None
STORAGE CONTROLLER :
Type : 1 X Raid – Integrated – Pci-X
Controller Interface Type : Ultra320 Scsi
Storage Controller Name : Smart Array 6i Controller
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 64 Mb
Storage Controller (2nd) :
Type : 1 X Ide – Integrate
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated.
Graphics Processor: Ati Rage Xl.
Video Memory : Sdram.
Installed Size: 8 Mb.
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci-X – Integrated
Ethernet Controller : Nc7782
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
POWER DEVICE :
Device Type: Power Supply – Hot-Plug.
Power Redundancy: Optional.
Power Redundancy Scheme: 1+1 (With Optional Power Supply).
Installed Qty: 1
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz ).
Power Provided: 575 Watt.
