Refurbished 378738-001 Technical Specifications

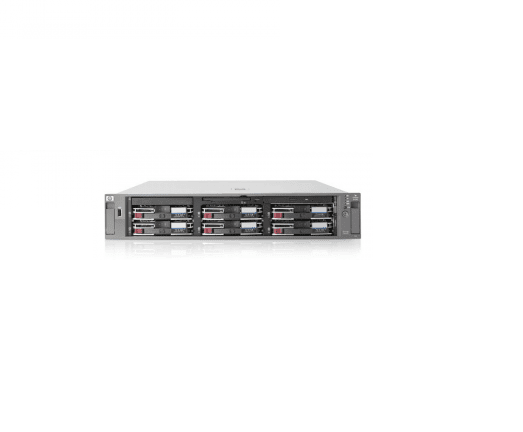

HP Proliant DL380 G4 2X Intel Xeon 3.4GHz, 2GB RAM, NC7782 Gigabit Network Adapter, Ultra320 Smart 6I With 128MB BBWC AND Duplex Backplane Standard, 2X 575W PS 2U Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 378738-001
Product Name: Proliant Dl380 G4 2u Rack Mount Server (High Performance Model)
PROCESSOR & CHIPSET :
CPU : Intel Xeon 3.4 GHZ
64-Bit Computing : Yes
Installed CPU Qty : 2
Max CPU Qty : 2
CPU Upgradability : Upgradable
CPU Socket : Socket 604
Chipset Type : Intel E7520
Front Side Bus : 800 MHZ
CACHE MEMORY :
Cache Memory Type: L2 Cache
Installed Size: 2 MB
Cache Per Processor: 2 MB
MEMORY:
Installed RAM Size : 2 GB (2 X 1024MB) / 16 GB (MAX).
Technology: DDR2 SDRAM Advanced Ecc.
Memory Speed: 400 Mhz.
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin.
Features: Registered.
Upgrade Rule: 2 Modules At A Time.
STORAGE :
Hard Drive : None
Optical Storage Type :
Type : Dvd-ROM Ide
Read Speed : 24x (Cd) / 8x (Dvd)
Floppy Drive : 3.5 1.44 MB Floppy
STORAGE CONTROLLER :
Type : 1 X Raid Integrated – Pci-X
Controller Interface Type : Ultra320 Scsi
Storage Controller Name : Smart Array 6i Controller
Channel Qty : 2
Raid Level : Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size : 128 MB
Storage Controller (2nd) :
Type : 1 X Ide Integrated
DISPLAY & GRAPHICS CONTROLLER:
Graphics Controller Type: Integrated.
Graphics Processor: Ati Rage Xl.
Video Memory : SDRAM.
Installed Size: 8 MB.
NETWORK & COMMUNICATION :
Networking : Network Adapter – Pci-X – Integrated
Ethernet Controller : Nc7782
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Wake On Lan (Wol)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DEVICE:
Device Type: Power Supply Hot-Plug.
Power Redundancy: Yes.
Power Redundancy Scheme: 1+1
Installed Qty: 2
Max Supported Qty: 2
Voltage Required: Ac 120/230 V ( 50/60 Hz ).
Power Provided: 575 Watt.
