Refurbished 382187-405 Technical Specifications

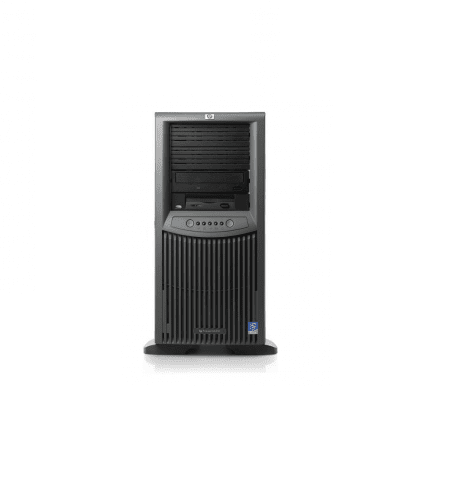

HP Proliant Ml350 G4p CTO Chassis With No CPU No RAM Ultra320 SCSI Gigabit Ehternet Ilo Ps 5u Tower Server.
General Information:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 382187-405
Product Name: Proliant Ml350 G4p Server Cto Model
5U Tower Server
Processor & Chipset:
Processor Type: No Cpu
Max Supported Qty: 2
Upgradability: Upgradable
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
Ram:
Installed Size: 0 Mb
Max Supported Size: 12 Gb
Technology: Ddr2 Sdram – Advanced Ecc
Form Factor: Dimm 240-Pin
Storage & Storage Controller:
Hard Drive: None.
Storage Controller Type(1st): 1 X Scsi – Integrated – Pci 64
Controller Interface Type: Ultra320 Scsi
Channel Qty: 2
Storage Controller Type(2nd): 1 X Ide – Integrated.
Display & Graphics Controller :
Graphics Controller Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: 8 Mb Sdram
Networking:
Networking: Network Adapter – Pci – Integrated
Ethernet Controller: Hp Nc7761
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out Standard
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion / Connectivity:
Expansion Bays Total (Free):
6 ( 6 ) X Hot-Swap – 3.5in X 1/3h
3 ( 3 ) X Front Accessible – 5.25in X 1/2h
1 ( 1 ) X Front Accessible – 3.5in X 1/3h
Expansion Slots Total (Free):
1 ( 1 ) X Pci-X / 133 Mhz
2 ( 2 ) X Pci-X / 100 Mhz
1 ( 1 ) X Pci-X / 66 Mhz
1 ( 1 ) X Pci Express X4 – Half-Length
1 ( 1 ) X Pci Express X8
2 ( 2 ) X Processor
6 ( 6 ) X Memory – Dimm 240-Pin
Interfaces:
2 X Hi-Speed Usb – 4 Pin Usb Type A
1 X Parallel – Ieee 1284 (Epp/Ecp) – 25 Pin D-Sub (Db-25)
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9)
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style)
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15)
1 X Network – Ethernet 10base-T/100base-Tx/1000base-Tx – Rj-45
1 X Management – Hp Ilo – Rj-45
