Refurbished 393622-405 Technical Specifications

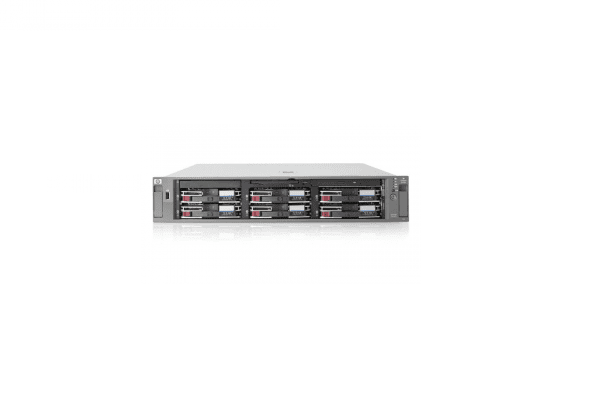

HP Proliant DL385 G1 2u Rack SAS CTO Chassis With no CPU 0mb Ram NC7782 Dual Port Nic Ilo 1 X 575watt Ps Lowline Nema Power Cord 5 X 5 Hot Plugfans.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 393622-405
Product Name: Proliant DL385 Cto Chassis -Sas Model
PROCESSOR & CHIPSET:
Total Processor Support: 2
Processor: No Cpu
Processor Technology: Hyper transport Technology
MEMORY:
Standard Memory: 0gb
Maximum Memory: 32gb
Technology: Ddr Sdram – Advanced Ecc
Form Factor: Dimm 184-Pin
Features: Registered, Slots 5 – 8 Are Available In Two-Processor Configuration Only
Upgrade Rule: 2 Modules At A Time
STORAGE:
Hard Drive: Not Included
Maximum Internal Storage Support: 1.8tb Hot Swap Scsi
Optical Drive: Not Included
Removable Storage Drives: Not Included
STORAGE CONTROLLER:
Storage Controller Type: 1 X Raid – Integrated – Pci-X / 133 Mhz
Controller Interface Type: Ultra320 Scsi
Storage Controller Name: Smart Array 6i Controller
Channel Qty: 2
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 64 Mb
Storage Controller (2nd):
Storage Controller Type: 1 X Ide – Integrated
DISPLAY & GRAPHICS:
Graphics Controller: Ati Rage Xl 8mb Sdram Integrated
NETWORK & COMMUNICATION:
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc7782
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller: Integrated Lights-Out Standard
Features: Wake On Lan (Wol)
Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
STORAGE CONTROLLERS :
Expansion Bays:
1 ( 0 ) X Front Accessible – 5.25 Slim Line,
1 ( 1 ) X Front Accessible – 3.5,
8 ( 8 ) X Hot-Swap – 2.5
Expansion Slots:
2 ( 1 ) X Processor,
8 ( 6 ) X Memory – Dimm 184-Pin,
1 ( 0 ) X Pci-X / 133 Mhz,
2 ( 2 ) X Pci-X / 100 Mhz
INTERFACES & PORTS:
1 X Serial – Rs-232 – 9 Pin D-Sub (Db-9),
1 X Mouse – Generic – 6 Pin Mini-Din (Ps/2 Style),
1 X Display / Video – Vga – 15 Pin Hd D-Sub (Hd-15),
1 X Keyboard – Generic – 6 Pin Mini-Din (Ps/2 Style),
1 X Management – Hp Ilo,
2 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45,
3 X Usb – 4 Pin Usb Type A
