Refurbished 397435-B21 Technical Specifications

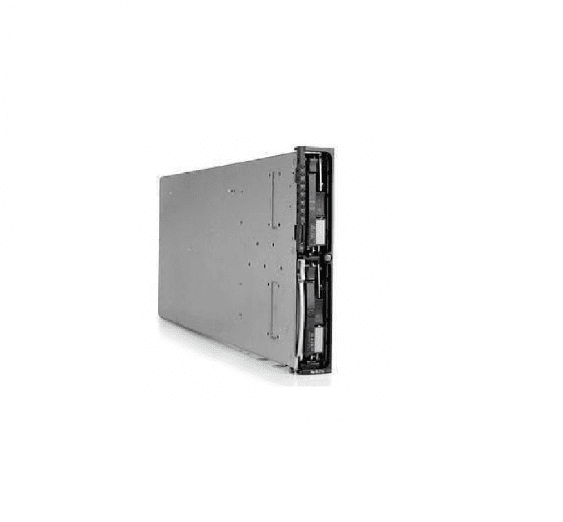

HP Proliant Bl20p G3 2p Xeon 3.8GHz 2GB RAM Ultra320 Scsi 4 X Gigabit Ethernet Ilo Blade Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard
Manufacturer Part Number: 397435-B21
Product Name: Proliant Bl20p Blade Server
PROCESSOR & CHIPSET :
Type: Intel Xeon 3.8 Ghz
64-Bit Computing: Yes
Installed Qty: 2
Max Supported Qty: 2
Processor Main Features:
Hyper-Threading Technology
Intel Extended Memory 64 Technology
Chipset Type: Intel E7520
Data Bus Speed: 800 Mhz
CACHE MEMORY :
Type: L2 Cache
Installed Size: 4 MB
Cache Per Processor: 2 MB
RAM :
Installed Size: 2 Gb / 8 Gb (Max)
Technology: Ddr2 Sdram – Ecc
Memory Speed: 400 Mhz
Memory Specification Compliance: Pc2-3200
Form Factor: Dimm 240-Pin
Features: Registered
Upgrade Rule: 2 Modules At A Time
STORAGE :
Hard Drive: None.
Internal Storage: Up To 600-Gb Maximum (With Optional Hard Drives)
Optical Drive : None
STORAGE CONTROLLERS :
Type: 1 X Raid – Integrated
Controller Interface Type: Ultra320 Scsi
Storage Controller Name: Smart Array 6i Plus Controller
Channel Qty: 2
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 64 Mb
DISPLAY & GRAPHICS :
Type: Integrated
Graphics Processor: Ati Rage Xl
Video Memory: 8 Mb Sdram
NETWORKING :
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 4 X Gigabit Ethernet
Ethernet Controller(S): Hp Nc7781
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol)
