Refurbished 399684-001 Technical Specifications

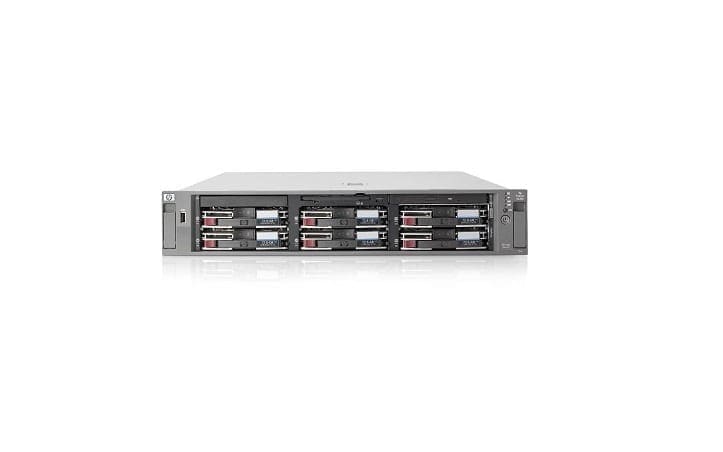

HP Proliant DL385 G1 1X Amd Opteron 280 DC 2.4GHz 1 GB RAM Ultra320 SCSI 24X CD-ROM Gigabit Ethernet ILO 2U Rack Server.
GENERAL INFORMATION:
Manufacturer: Hewlett-Packard.
Manufacturer Part Number: 399684-001
Product Name: Proliant Dl385 Server
2U Rack Mount Server
PROCESSOR & CHIPSET:
Processor Type: Amd Opteron Opteron 280 Dual Core 2.4ghz
Installed Qty: 1
Total Processor Support: 2
Processor Technology: Hypertransport Technology.
Data Bus Speed: 1000 Mhz
CACHE MEMORY:
Cache Memory Type: L2 Cache
Installed Size: 2 Mb
Cache Per Processor: 2 Mb ( 2 X 1 Mb )
RAM :
Installed Size: 1 Gb
Max Supported Size: 32 Gb
Technology: Ddr Sdram – Advanced Ecc
Memory Speed: 400 Mhz
Memory Specification Compliance: Pc3200
Form Factor: Dimm 184-Pin
Upgrade Rule: 2 Modules At A Time
Features: Registered,Slots 5-8 Are Available In Two-Processor Configuration Only
STORAGE & STORAGE CONTROLLER :
Hard Drive : None
Maximum Internal Storage Support : 1.8tb Hot Swap Scsi
Optical Drive : Cd-Reader – Cd-Rom (Atapi)
Removable Storage Drives : Not Included
Storage Controller Type(1st): 1 X Raid – Integrated – Pci-X / 133 Mhz
Controller Interface Type: Ultra320 Scsi
Storage Controller Name: Smart Array 6i Controller
Channel Qty: 2
Raid Level: Raid 0, Raid 1, Raid 5, Raid 10
Buffer Size: 64 Mb
Storage Controller Type(2nd): 1 X Ide – Integrated
Controller Interface Type: Ide/Ata
DISPLAY & GRAPHICS CONTROLLER :
Graphics Controller Type : Integrated.
Graphics Processor : Ati Rage Xl
Video Memory : 8 Mb Sdram
NETWORKING:
Networking: Network Adapter – Pci-X – Integrated
Ethernet Ports: 2 X Gigabit Ethernet
Ethernet Controller: Hp Nc7782
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Features: Wake On Lan (Wol)
Compliant Standards: IEEE 802.3, IEEE 802.3U, IEEE 802.3AB
POWER DESCRIPTION:
Power Device Type: Power Supply – Hot-Plug
Power Redundancy: Optional
Power Redundancy Scheme: 1+1 (With Optional Power Supply)
