3KDWX Technical Specifications

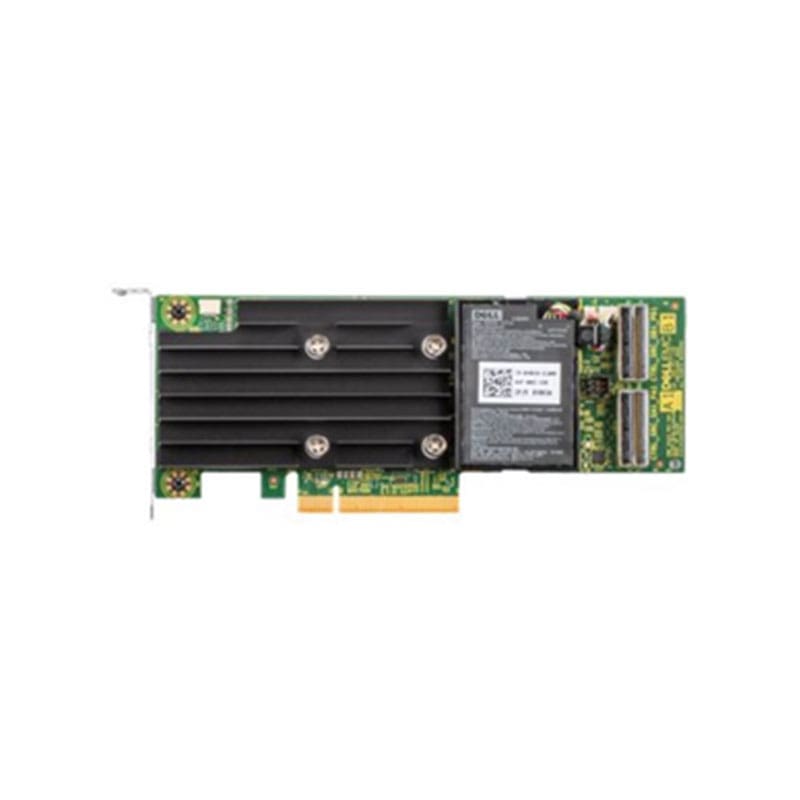

Dell PERC H755 12 Gigabytes Per Second (GBPS) 8 Gigabyte (GB) Nv Cache Peripheral Component Interconnect Express (PCI-E)4.0 Serial-Attached SCSI (SAS) Raid Controller
Manufacturer: Dell
Product Type: Raid Controller
Technical Information of Dell Raid Controller
Drive Types: 12GBPS SAS 6GBPS SAS/SATA 3GBPS SAS/SATA
PCI Support: PCI-E 4.0
Max Drive Support: 240
SAS Connectors: 2×8 Internal
Cache Memory: 8GB Nv Cache
Write Back Cache: Flash Backed Cache
Raid Levels: 0,1,5,6,10,50,60
Raid Support: Hardware
