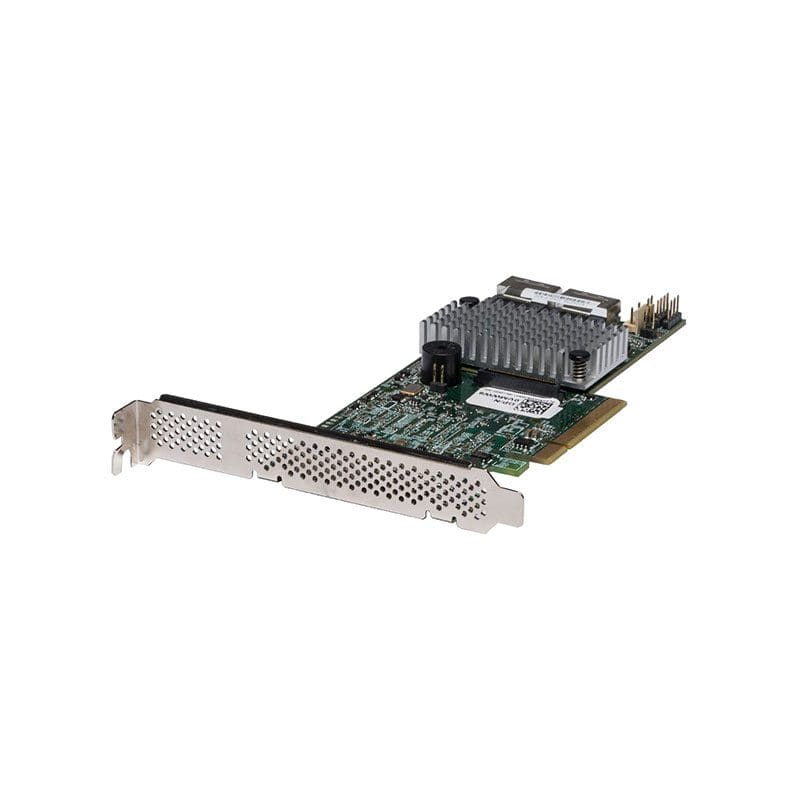

403-BBEL Dell Lsi Logic 6gb/s Sas Pci-express Sata Host Bus Adapter

403-BBEL Technical Specifications

Dell Lsi Logic 6gb/s Megaraid Sas 9271-8i 8port Pci-express 3.0 X8 Sas Sata Host Bus Adapter With Bracket

Manufacturer Dell
Manufacturer Part # 403-BBEL
Product Type: Sas Controller
Host Interface: Pci Express 3.0 X8
Data Transfer Rate: 768 Mbps Per Port
Interfaces: Serial Attached Scsi (sas), Serial Ata/600
Raid Supported: Yes
Raid Levels: 0, 1, 10, 50, 60, 5, 6
Data Backup Type: Battery Backup
Standard Memory: 1 Gb Ddr3 Sdram
Ports: 2 X Sff-8087 6gb/s Sas – Mini-sas Internal
Height: 2.5
Width: 6.6
Form Factor: Low-profile Plug-in Card
